Hardware Setup
2-19

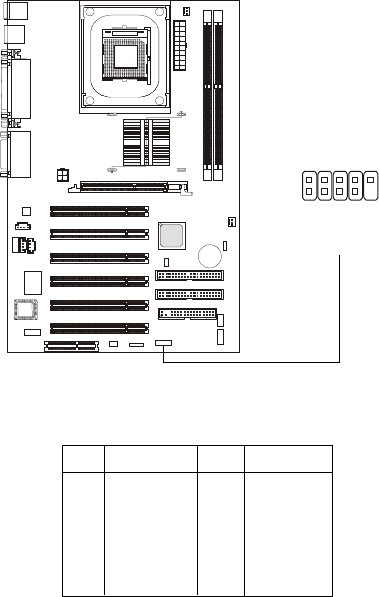

Front USB Connector: JUSB1
The mainboard provides a front Universal Serial Bus connector for you
to connect to USB devices. The JUSB1 connector is compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
Pin Description Pin Description
1 USBPWR 2 USBPWR
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
9 NC 10 USBOC
JUSB1 Pin Definition
JUSB1
1
9
2 10
