Hardware Setup
2-19

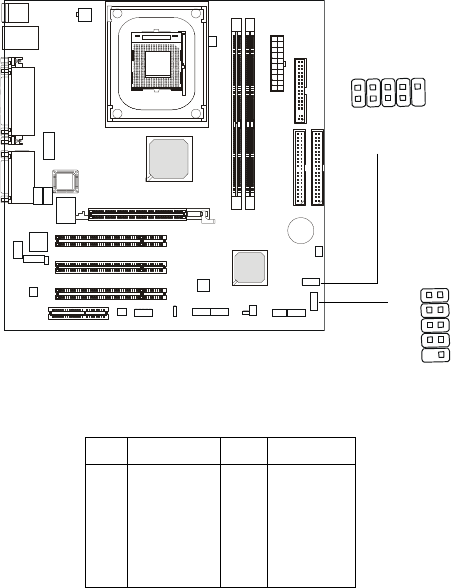

Front USB Connector: JUSB2 & JUSB3
The mainboard provides two front Universal Serial Bus connector for
users to connect to USB devices. Users can choose either the JUSB2 or the
JUSB3 depending on their needs. JUSB2 & JUSB3 are compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
Pin Description Pin Description
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 NC 10 USBOC
JUSB2 & JUSB3 Pin Definition
JUSB3
JUSB2
2
10
1
9
2
10
1
9
