MS-6570 ATX Mainboard

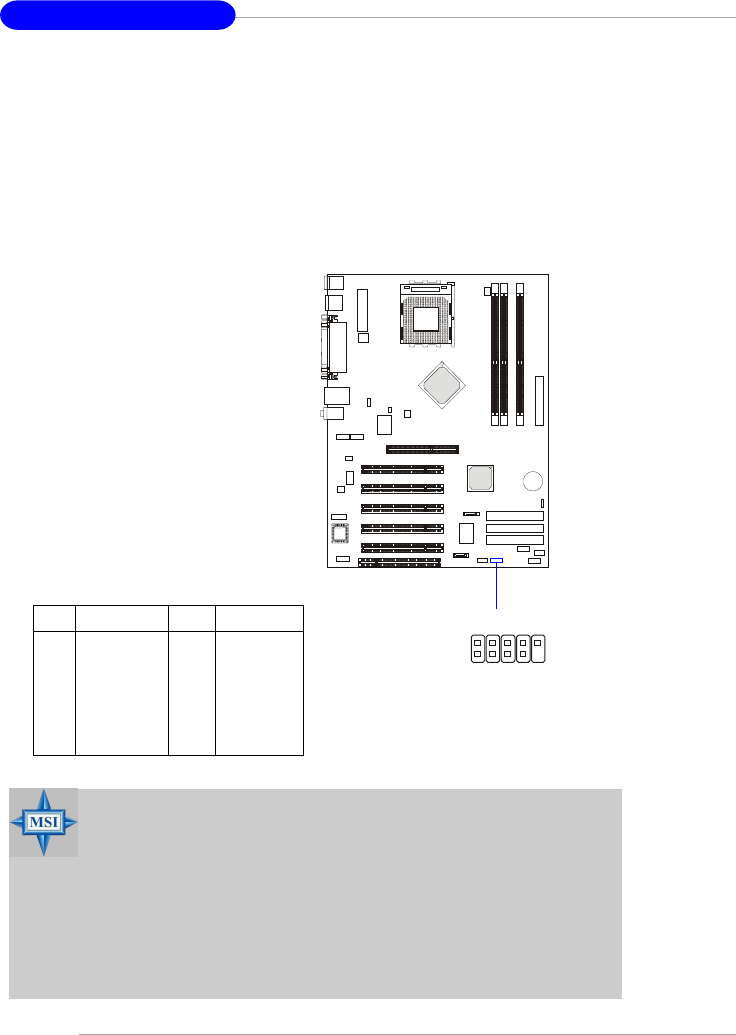

Front USB Connector: JUSB2
The mainboard provides one USB 2.0 pin header JUSB2 that is compliant
with Intel
®
I/O Connectivity Design Guide. USB 2.0 technology increases
data transfer rate up to a maximum throughput of 480Mbps, which is 40
times faster than USB 1.1, and is ideal for connecting high-speed USB inter-
face peripherals such as USB HDD, digital cameras, MP3 players, printers,
modems and the like.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 USBOC
JUSB2 Pin Definition
1
2
9
10
JUSB2
MSI Reminds You...
The USB 2.0 technology is downward compatible with USB 1.1
spec. To use the USB 2.0 ports, you have to install the USB 2.0
driver, which is supplied by Microsoft for Windows
®
2000 and
XP. If you have any problems regarding the USB 2.0 driver,
please visit the Microsoft Web site for more information.
For details on the bluetooth settings, please refer to PC2PC
Bluetooth Manual.
