Using the Back Panel only
In addition to a default 2-channel analog audio output function, the au-
dio connectors on the Back Panel also provide 4- or 6-channel analog audio
output function if a proper setting is made in the software utility.
Read the following steps to have the Multi-Channel Audio Function
properly set in the software utility, and have your speakers correctly con-
nected to the Back Panel.

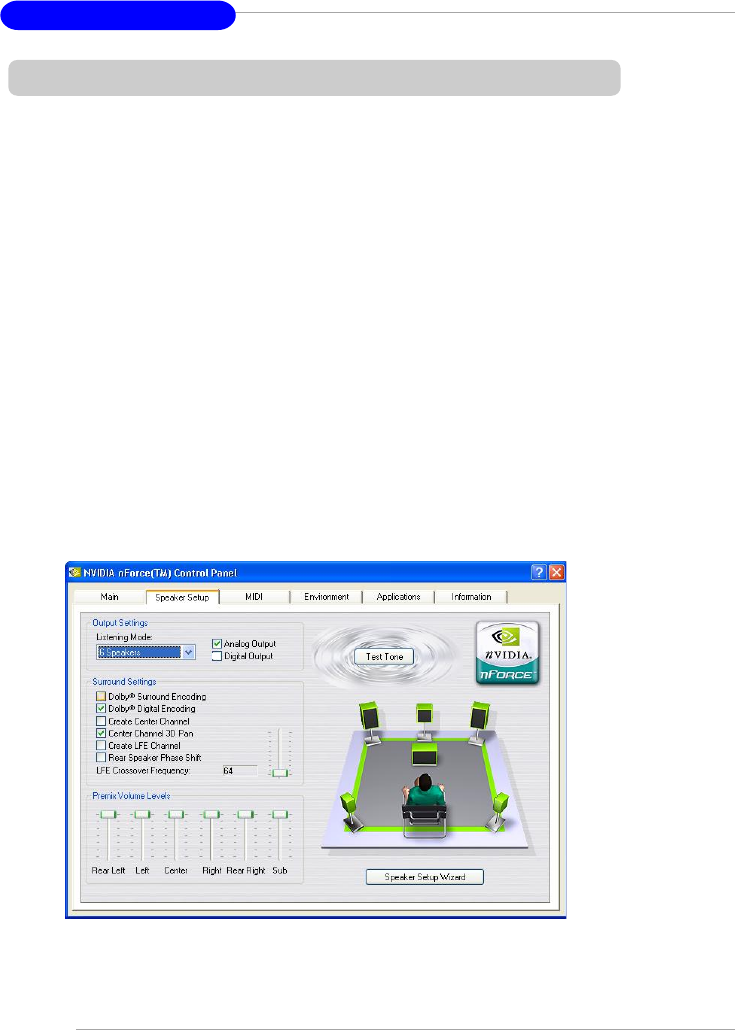

Configuration in the Software Utility
1. Click the audio icon at the lower-right corner of the screen.
2. Click the Speaker Setup tab.
3. Select a desired multi-channel operation from Listening Mode.
a. Headphones Mode for headphone Output
b. 2-Channel Mode for Stereo-Speaker Output
c. 4-Channel Mode for 4-Speaker Output
d. 6-Channel Mode for 5.1-Speaker Output
4. Select Analog Output when using Back Panel only.
