MS-6570 ATX Mainboard
Color Management
MSI has an unified color management rule for some connectors on the
mainboards, which helps you to install the memory modules, expansion cards
and other peripherals devices more easily and conveniently.
hMemory DDR DIMMs: light green
h IDE ATA133 connectors: yellow
h Serial ATA150 connectors: orange
h AGP 8X slot: red
h 1394 conncetors: dark green
h USB 2.0 connector shared with bluetooth module: blue
h Front panel connector JFP1 : HDD LED in red, Reset Switch in blue,
Power Switch in black, Power LED in
light green.
h Front panel connector JFP2: Power LED in light green.

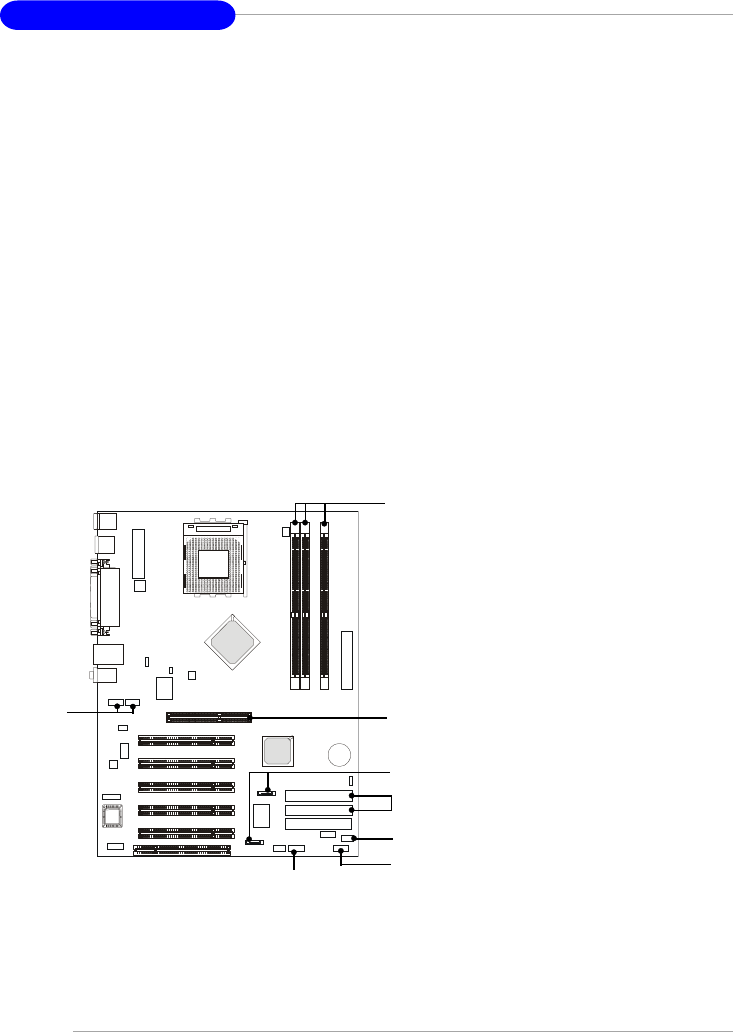

Memory DDR DIMMs
Front Panel connector JFP1
USB 2.0 connector
AGP 8X Slot
IDE ATA133 connectors
Serial ATA150 connectors
Front Panel connector JFP2
1394 connectors
