2-23
Hardware Setup

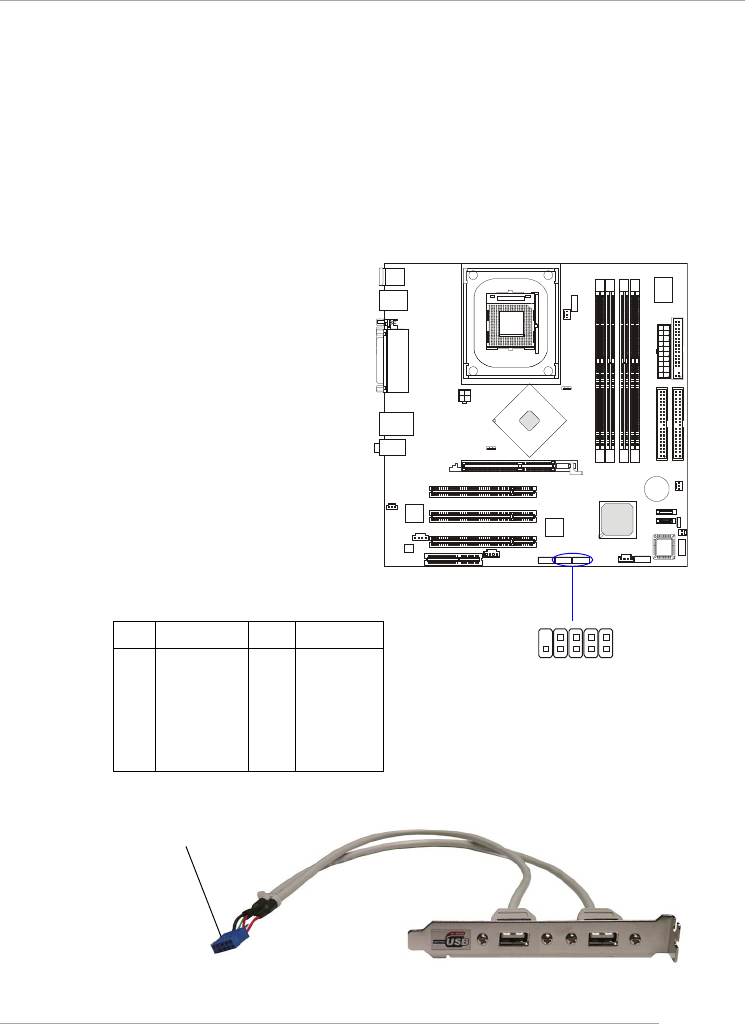

Front USB Connectors: JUSB1, JUSB2
The mainboard provides two USB 2.0 pin headers JUSB1/2 that are
compliant with Intel
®
I/O Connectivity Design Guide. USB 2.0 technology
increases data transfer rate up to a maximum throughput of 480Mbps, which
is 40 times faster than USB 1.1, and is ideal for connecting high-speed USB
interface peripherals such as USB HDD, digital cameras, MP3 players,
printers, modems and the like.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 USBOC
Pin Definition
Connected to JUSB1
or JUSB2
USB 2.0 Bracket
(Optional)
1
9
2
10
JUSB1/2
