2-13
Hardware Setup
LAN Jack: 10/100Mbps LAN (for 865PEM2 Series) or Giga-
bit LAN (for 865GM3 Series)
The mainboard provides one standard RJ-45 jack for connection to Lo-
cal Area Network (LAN). Two LAN chipsets are available upon request:
1. 10/100Mbps LAN for 865PEM2-IL mainboard.
2. Gigabit LAN for 865GM3-F mainboard.
Gigabit LAN enables data to be transferred at 1000, 100 or 10Mbps. 10/
100 LAN enables data to be transferred at 100 or 10Mbps. You can connect a
network cable to this LAN jack.

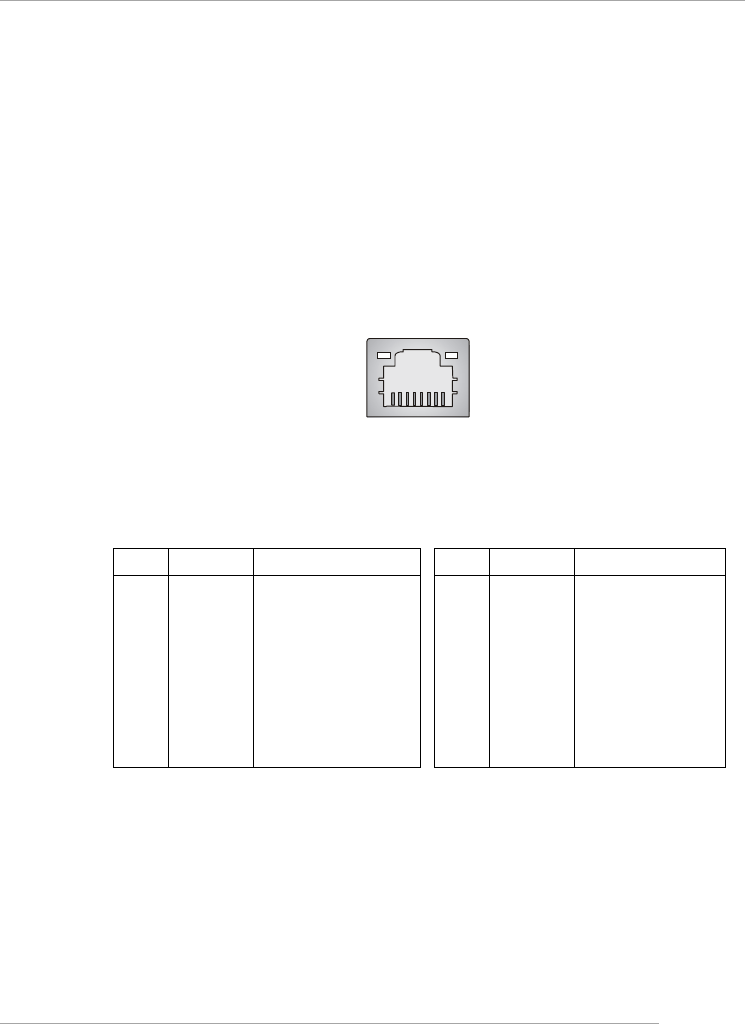

RJ-45 LAN Jack
10/100 LAN Pin Definition
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
Gigabit LAN Pin Definition
PIN SIGNAL DESCRIPTION
1 D0P Differential Pair 0+
2 D0N Differential Pair 0-
3 D1P Differential Pair 1+
4 D2P Differential Pair 2+
5 D2N Differential Pair 2-
6 D1N Differential Pair 1-
7 D3P Differential Pair 3+
8 D3N Differential Pair 3-
