2-19
Hardware Setup
MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.
CPU_FAN
Sensor
+12V
GND

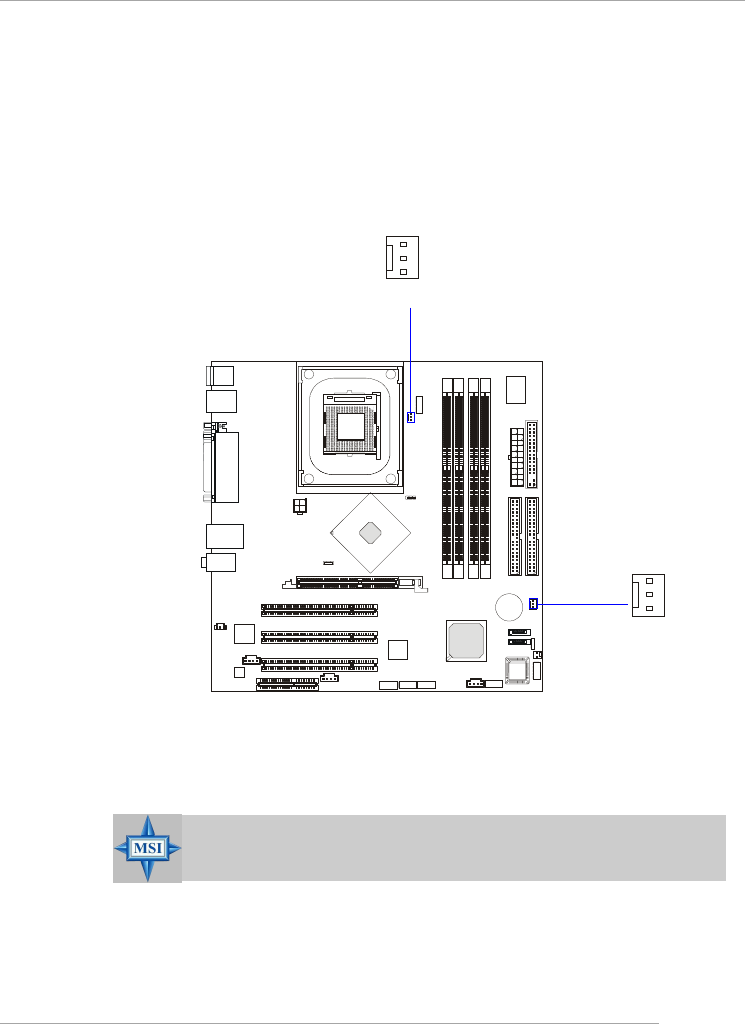

Fan Power Connectors: CPU_FAN/SYS_FAN
The CPU_FAN (processor fan) and SYS_FAN (system fan) support sys-
tem cooling fan with +12V. It supports three-pin head connector. When con-
necting the wire to the connectors, always take note that the red wire is the
positive and should be connected to the +12V, the black wire is Ground and
should be connected to GND.
SYS_FAN
SENSOR
+12V
GND
