Network Management Card
– User Manual 34003991EN/DA Page 83/120
Set the SA1 switches to select the two wires configuration with termination:

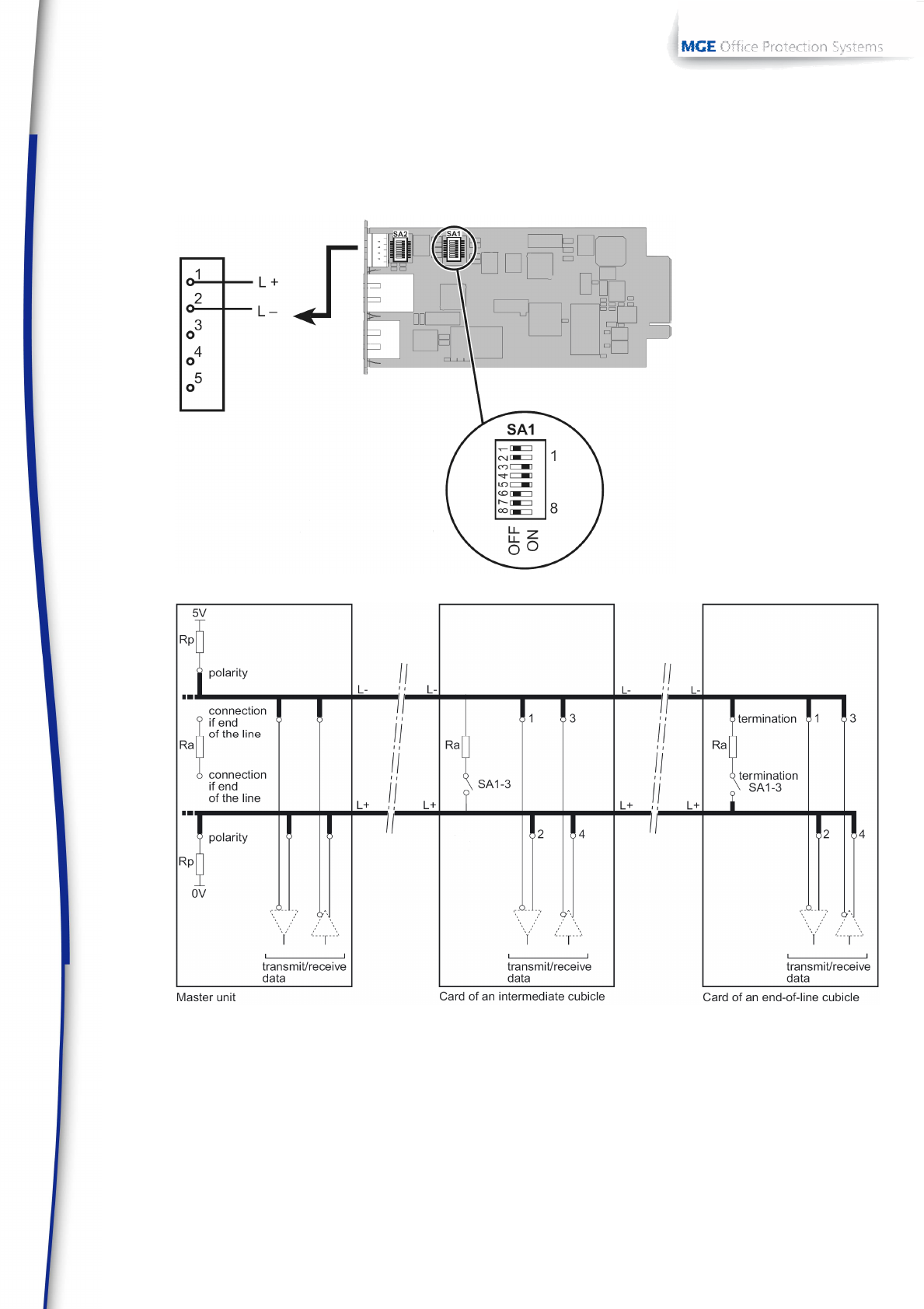

The next figure gives a typical bus structure in the two wires configuration:
