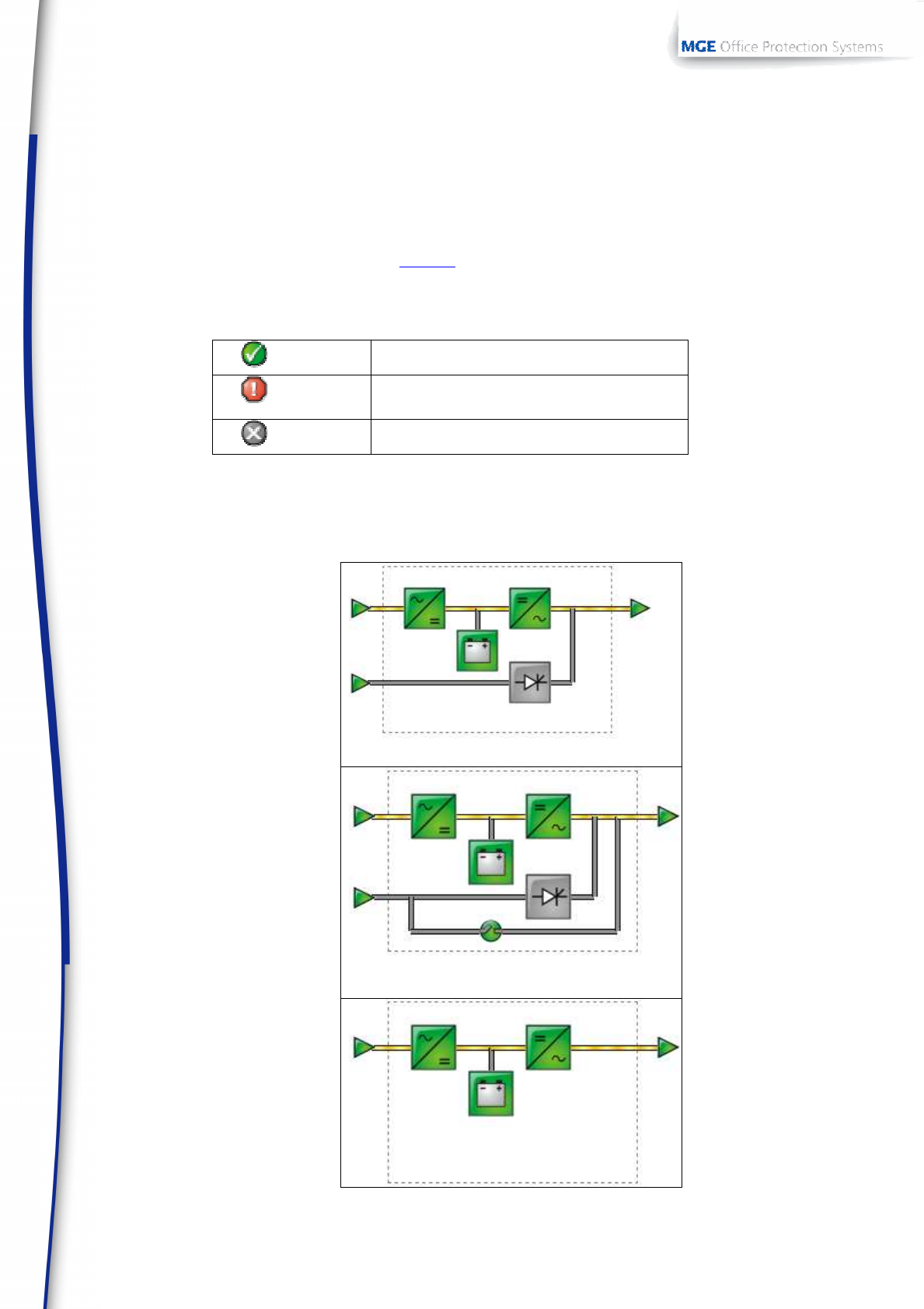

4.2.1.1 "UPS" zone: general information on the UPS.
Indication of the picture and generic name of the UPS range
Computer room: Customised name of your system.
You can change this name on the
"System" page.
UPS status icon :
The various icons showing the status of the UPS are:
Normal operation
Alarm present. This icon links directly to the
alarm page.
Loss of communication with the UPS
Animated synoptic: An animated synoptic gives a global overview of the UPS current operating mode.
This synoptic is available on On-Line and Line-interactive UPS.
The synoptic drawing depends on the UPS topology. The different drawings are described in the table below.
UPS with automatic bypass
UPS with automatic and manual bypass
