1170 System board, PC Card slot and bottom cover (D cover)
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 43
v “1050 Cover, strip (E cover)” on page 47
v “1060 Function board” on page 48
v “1080 MiniPCI adapter” on page 51
v “1120 LCD unit” on page 55
v “1130 Top cover assembly (C cover)” on page 57
v “1150 Modem daughter card (MDC)” on page 61
1
Step Screw (quantity) Color Torque
1 M2.5 × 3 mm, flat-head, nylon-coated (1) Black 0.392 Nm
(4 Kgfcm)

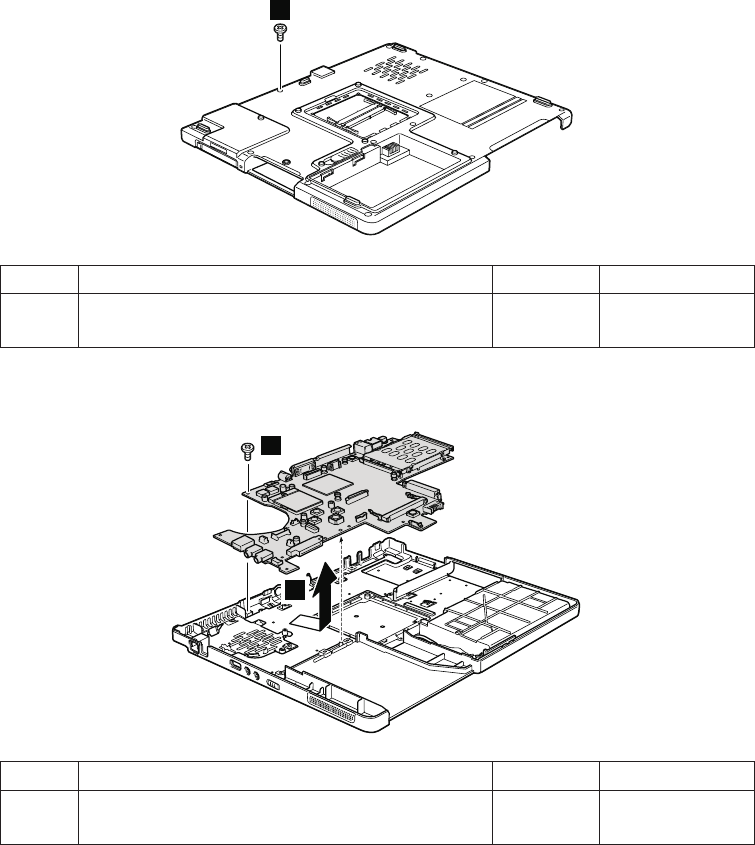

Remove the system board and the PC Card slot assembly from the bottom cover.
2
3
Step Screw (quantity) Color Torque
2 M2.5 × 3 mm, flat-head, nylon-coated (1) Black 0.392 Nm
(4 Kgfcm)
(continued)
Removing and replacing a FRU
Lenovo 3000 C100 63
