LANVIEW LEDs
4-4
The status of the ATM Transmit LED is listed in Table 4-7.
The following section lists the conditions of the APIM status (STS) and link (LNK)
LANVIEW LED’s.
An example showing the location of LANVIEW LEDs on an APIM is presented in
Figure 4-2. For further information about a particular APIM, refer to that specific
APIM’s documentation.

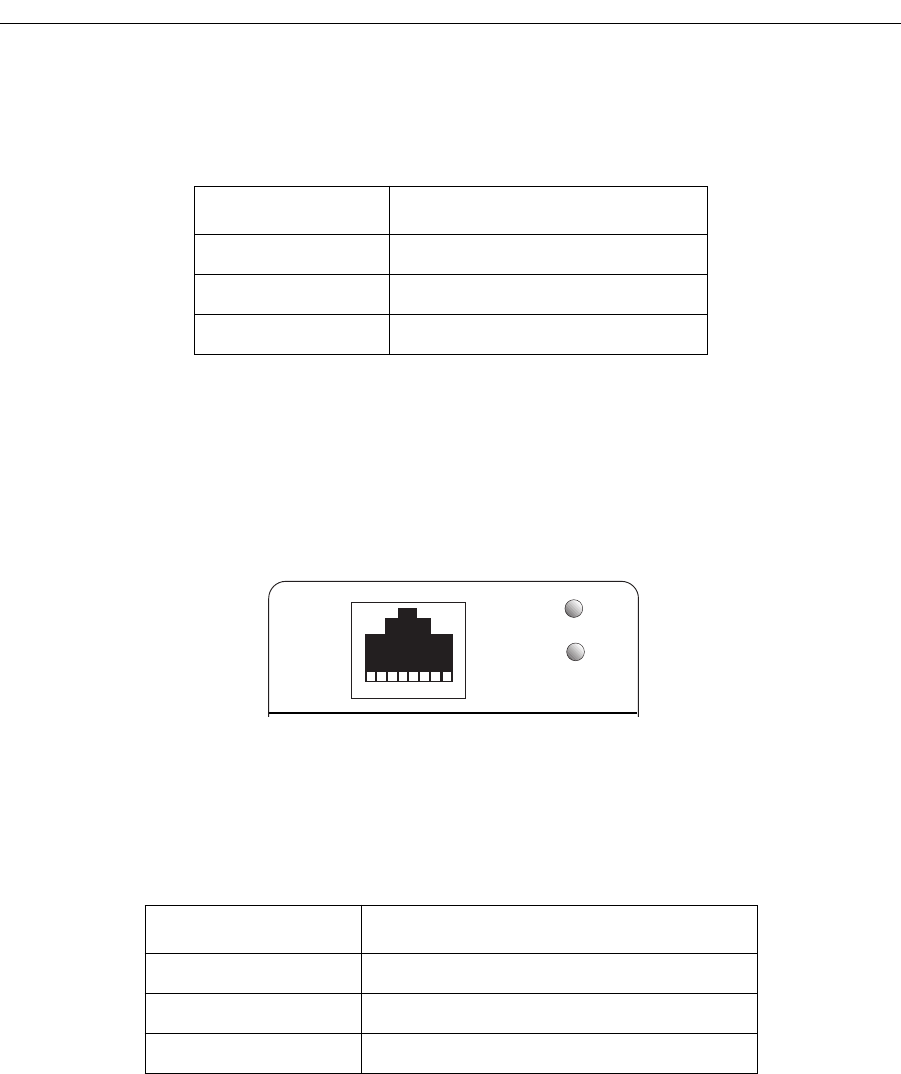

Figure 4-2. The LANVIEW LEDs of an APIM-22
The status of the APIM Status (STS) LED is listed in Table 4-8.
Table 4-7. ATM Transmit LEDs
LED Color State
Green (Flashing) Activity
Red Failure
Off No Activity
Table 4-8. APIM Status (STS) LED
LED Color State
Green Active
Amber Reset
Red Failure
1 2 3 4 5 6 7 8
LNK
STS
