Preparing and Installing the 9A426-02 Module

2-2

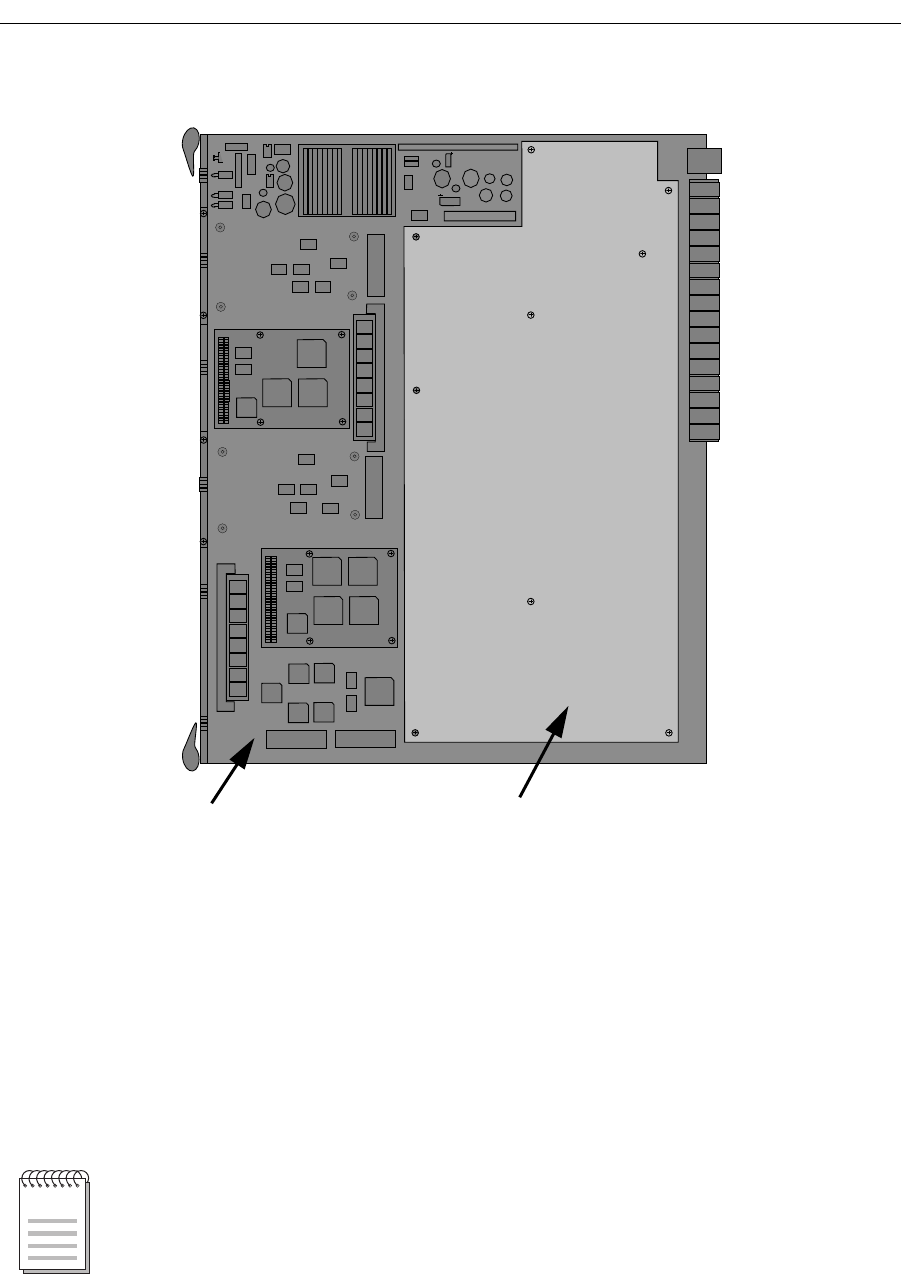

Figure 2-1. The 9A426-02 Module’s two major circuit boards

User-Accessible Components on the Module’s

Motherboard

The user accessible components on the module’s motherboard include

two Look-

Up Engines, up to two user-installed ATM Memory Upgrade SRAM SIMMs, and

up to two user-installed

ATM Port Interface Modules

(

APIMs). See Figure 2-2.

motherboard

daughterboard

The User Accessible Components on the motherboard of a 9A426-02 Module are

positioned in close proximity to one another. Therefore, to attain easier access for

removing a desired component, you may opt to remove an additional component.

For example, you may remove an SRAM SIMM to gain better access for

removing a Look-Up Engine.

NOTE
