Installation

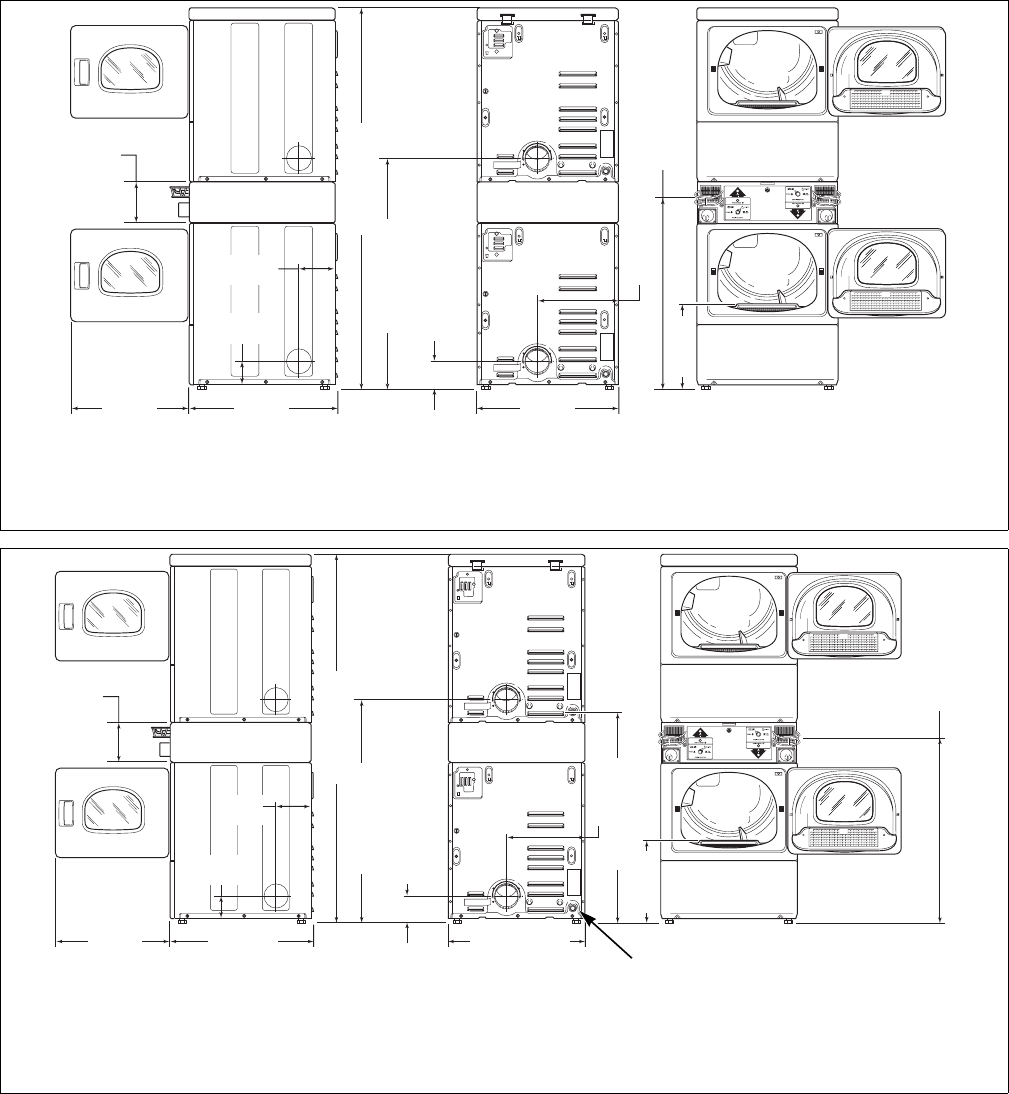

Dimensions
NOTE: Side, rear and bottom exhaust openings are
10.2 cm (4 in.) ducting. Gas models cannot be
vented out left side of cabinet because of burner
housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for
the ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
DRY2245N
*With leveling legs turned into base. NOTE: Not all models have windows.
17.8 cm
(7 in.)
*194.3 cm (76.5 in.)
*113.8 cm (44.8 in.)
20.3 cm
(8 in.)
10.2 cm
(4 in.)
ELECTRIC MODELS
11.4 cm
(4.5 in.)
39.4 cm (15.5 in.)
32.2 cm
(15.44 in.)
*100 cm (39.38 in.)
Coin Slide Models
*93.8 cm (36.94 in.)
Electronic Control Models
68.3 cm
(26.9 in.)
71.1 cm
(28.0 in.)
59.7 cm
(23.5 in.)
DRY2246N
*With leveling legs turned into base. NOTE: Not all models have windows.
1 3/8 in. N.P.T. Gas Connection
DRY2246N
17.8 cm
(7 in.)
*194.3 cm (76.5 in.)
*113.8 cm (44.8 in.)
59.7 cm
(23.5 in.)
10.2 cm
(4 in.)
68.3 cm (26.9 in.)
71.1 cm
(28.0 in.)
GAS MODELS
20.3 cm
(8 in.)
1
11.4 cm
(4.5 in.)
39.4 cm (15.5 in.)
32.2 cm
(15.44 in.)
*100 cm (39.38 in.)
Coin Slide Models
*93.8 cm (36.94 in.)
Electronic Control Models
110.5 cm (43.5 in.)
