TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.

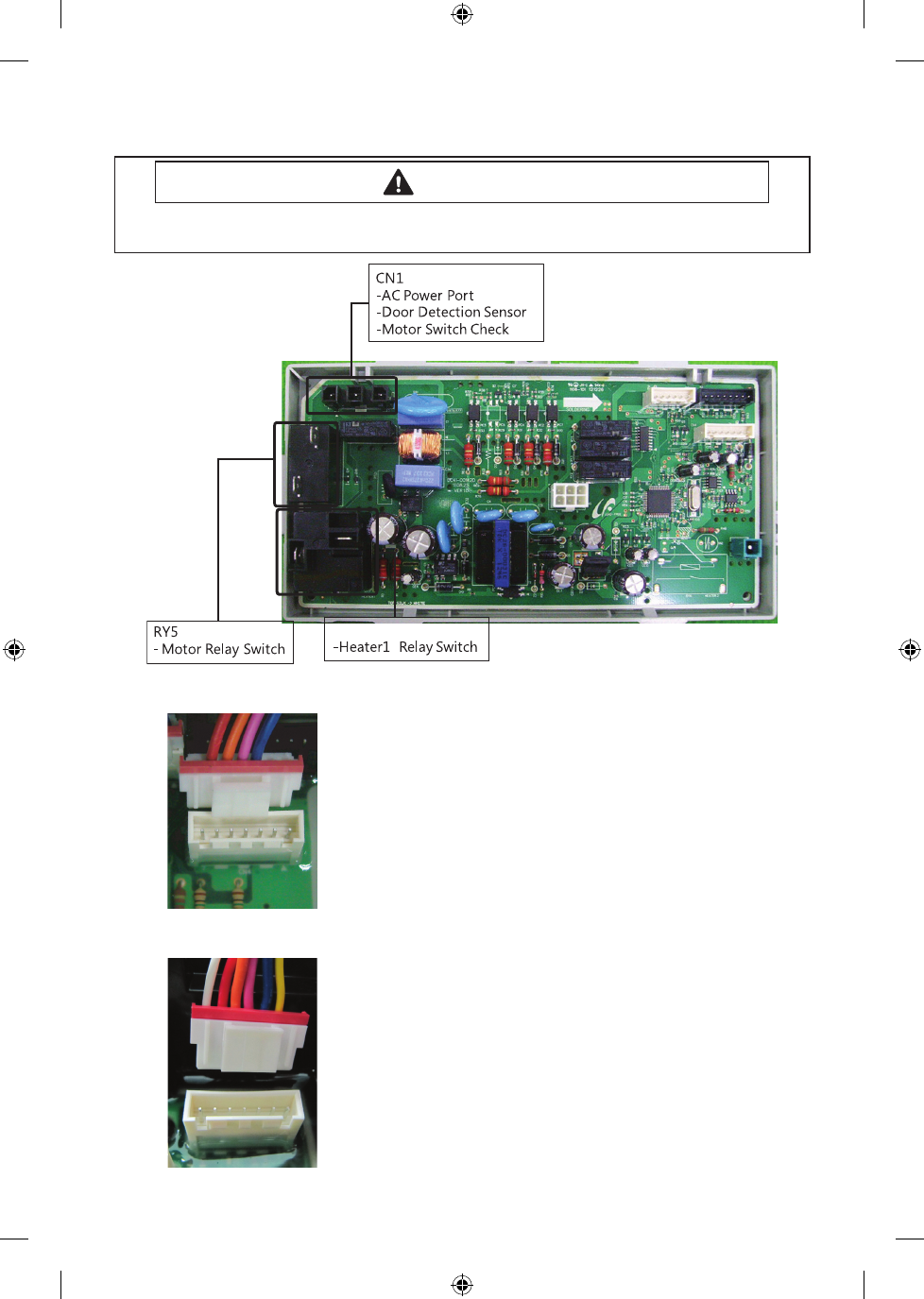

Sensor Bars & temperature sensor check (DV398 only)
Sensor Bars - Disconnect harness and test Pink wire Pin 4 to
Orange wire Pin 5.
Approx ∞ Ω without laundry
Approx 190Ω ± 10% with wet clothes
Cycling Thermistor1 - Disconnect harness and test Blue wire
Pin 3 to Red wire Pin 6.
Approx 10 KΩ at 25 °C / 77 °F
Cycling Thermistor2 - Disconnect harness and test Yellow
wire Pin 2 to White wire Pin 7.
Approx 238.231 KΩ at 25 °C / 77 °F
Sensor Bars & temperature sensor check
Sensor Bars - Disconnect harness and test Pink wire Pin 4 to
Orange wire Pin 5.
Approx ∞ Ω without laundry
Approx 190Ω ± 10% with wet clothes
Cycling Thermistor - Disconnect harness and test Blue wire
Pin 3 to Red wire Pin 6.
Approx 10 KΩ at 25 °C/77 °F
