Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (refer to Figure 4).
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp and by removing the shipping tape.
Install the drain hose into the drain receptacle
(standpipe, wall or laundry tub) following the
instructions below.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 inch (32 cm) outside
diameter drain hose.
Standpipe Installation:
Place the drain hose into the standpipe.
Remove the beaded strap from accessories bag and
place around standpipe and drain hose and tighten
strap to hold hose to standpipe. Refer to Figure 5. This
will prevent the drain hose from dislodging from drain
receptacle during use.
W005I

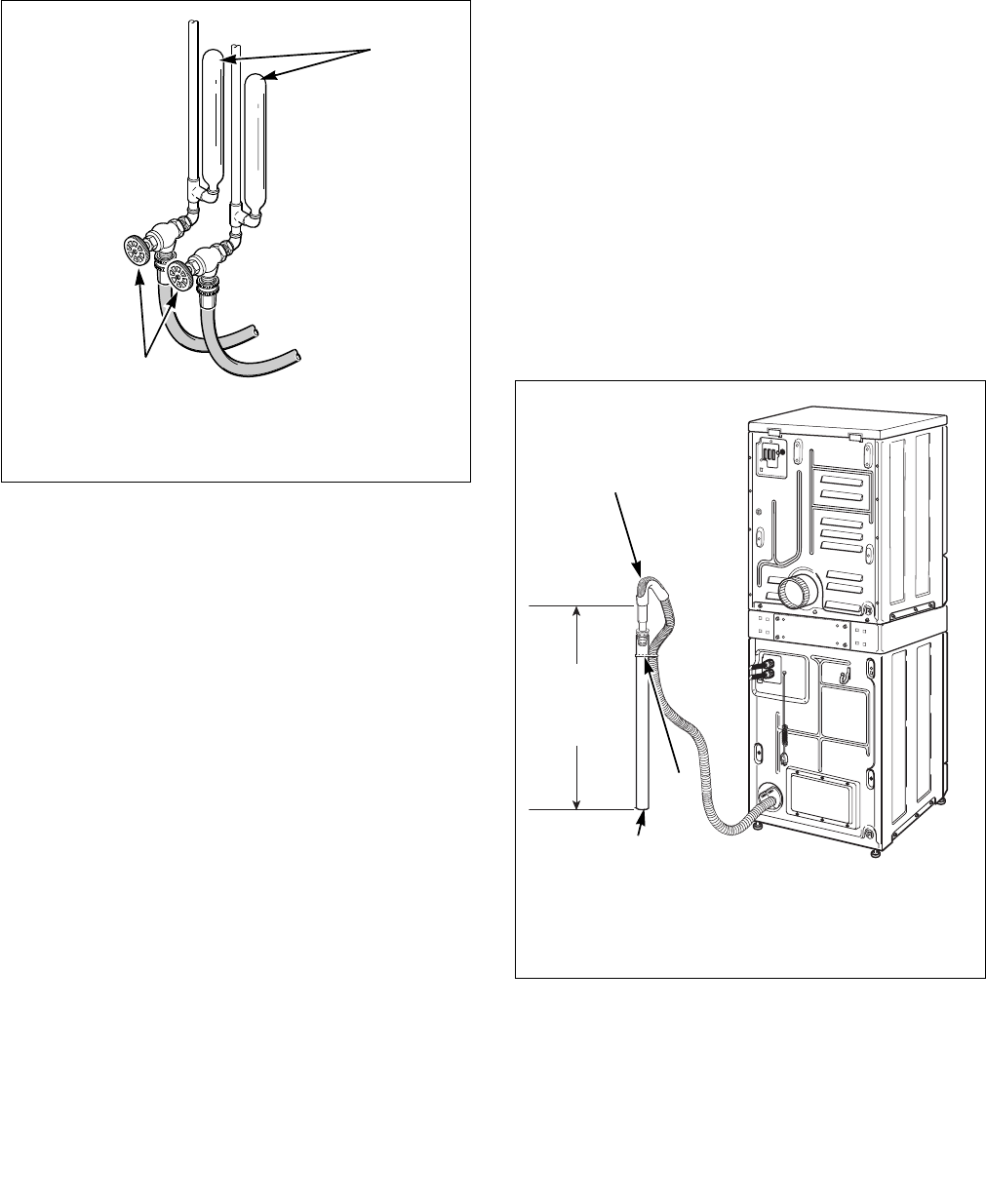

1 Water Supply Faucets
2 Risers (Air Cushions)
Figure 4
W005I
1
2
SWD598N
1 Drain Hose
2 Beaded Tie-Down Strap
3 Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm)
Figure 5
SWD598N
1
2
3
24 in. to 36 in.
(61 to 91.44 cm)
Recommended
Height
