Chapter 2: Installation
2-13
Ethernet Ports

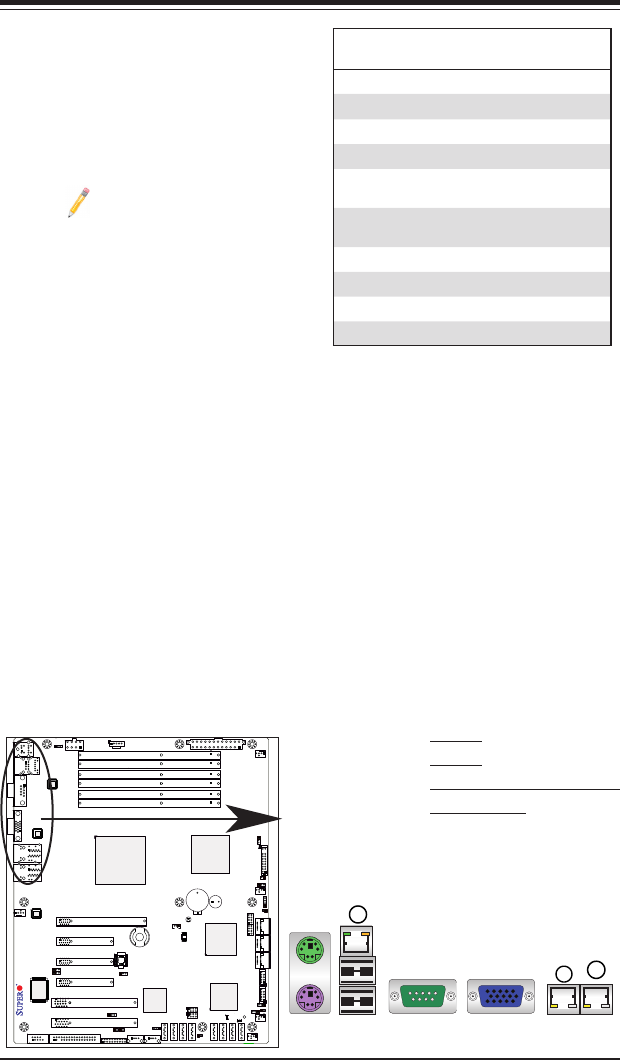

Two Ethernet ports are located next
to the VGA port on the IO Backplane.
In addition, an IPMI Dedicated LAN is
located above the USB ports. These
ports accept RJ45 type cables.
Notes:
1. The IPMI Dedicated LAN
is for the X8ST3-F only.
2. Please refer to the LED
Indicator Section for LAN
LED information.
LAN Ports
PinDenition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED
(Yellow, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 88 Ground
(NC: No Connection)
1. LAN1
2. LAN2
3.I PMI D edic ate d LAN
(X8ST3-F only)
X8ST3-F/X8STE
3
1
2
