2-12

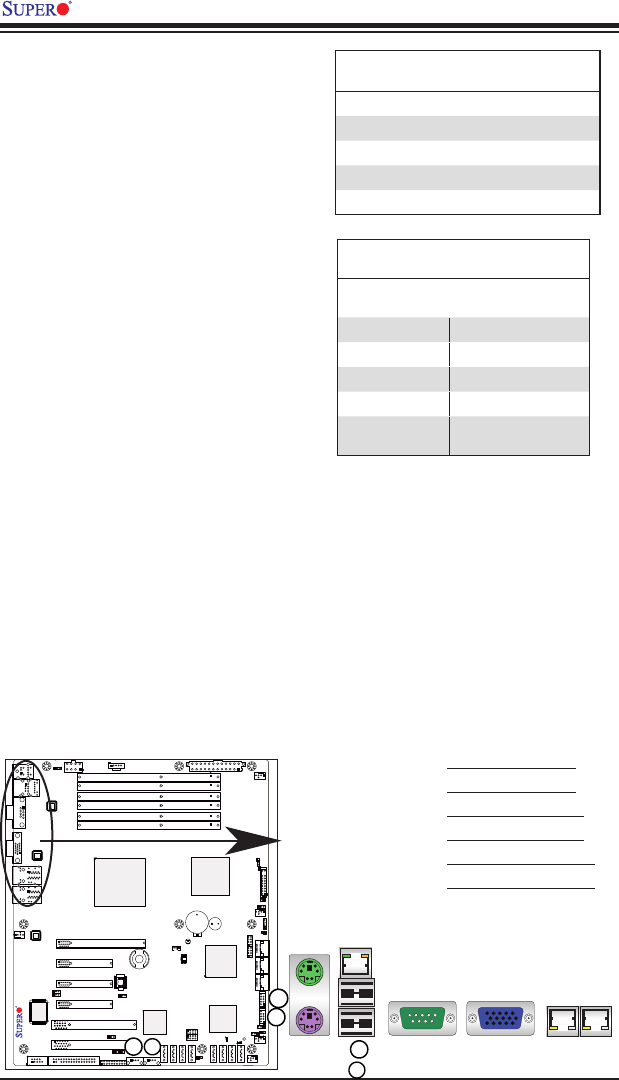

X8ST3-F/X8STE User's Manual
X8ST3-F/X8STE
1. Backplane USB 0
2. Backplane USB 1
3. Front Panel USB 2
4. Front Panel USB 3
5. Front Panel USB 4/5
6. Front Panel USB 6/7
Universal Serial Bus (USB)
Two Universal Serial Bus ports (USB
0/1) are located on the I/O back panel.
Additional six USB connections (USB
2, USB 3, USB 4/5 and USB 6/7) are
used to provide front chassis access.
USB 2 and USB 3 are Type A Connec-
tors. (USB Cables are not included).
See the tables on the right for pin
denitions.
Back Panel USB 0/1
PinDenitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
Front Panel USB 2, 3, 4/5, 6/7
PinDenitions
USB 2, 3, 4, 6
Pin # Denition
USB 5, 7
Pin # Denition
1 +5V 6 +5V
2 USB_PN2 7 USB_PN3
3 USB_PP2 8 USB_PP3
4 Ground 9 Ground
5 No Con-
nection
10 Key
4
3
5
6
1
2
