Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
Install POINTBlock I/O Modules 83

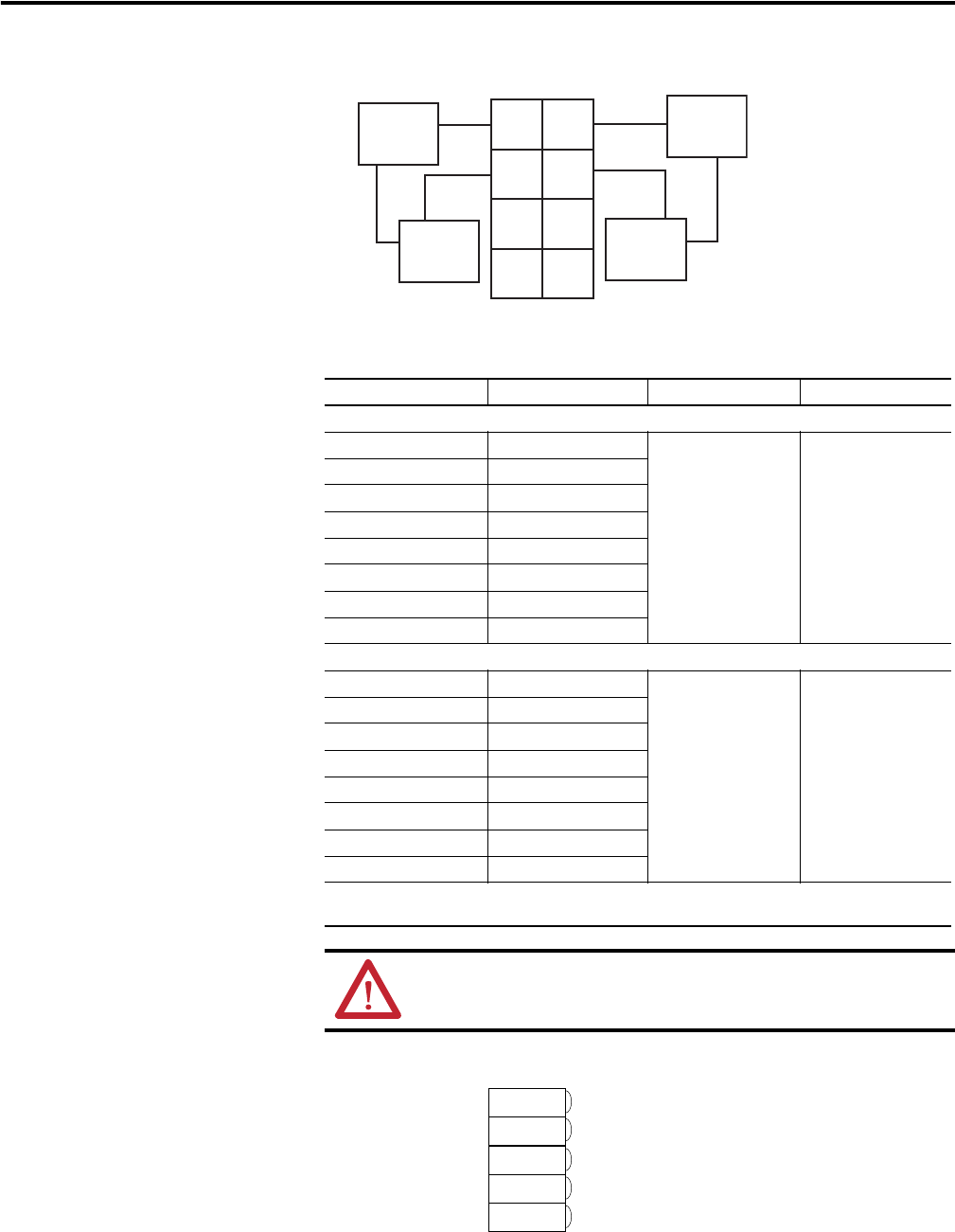

Output Wiring Diagram
(Load Powered by External Power)
DeviceNet Connector Wiring
Channel Output Common Supply
Remote Termination Block 3
0A 0 Not used Not used
0B 2
1A 1
1B 3
2A 4
2B 6
3A 5
3B 7
Remote Termination Block 4
4A 0 Not used Not used
4B 2
5A 1
5B 3
6A 4
6B 6
7A 5
7B 7
Supply voltage can range from +5V DC to 240V ac, depending on relay load.
12/24V DC power for the module is provided by the internal power bus.
ATTENTION: When connecting more than one wire in a
termination point, make sure that both wires are the same gauge
and type.
Out
0A
Out
0B
Out
1A
Out
1B
Load
Power
Supply
Out = Output channel relay contacts
Power Supply = can range from +5V DC to 240V ac
C = Common
0
2
4
6
3
5
7
1
Power
Supply
Load
Out
2A
Out
2B
Out
3A
Out
3B
DeviceNet
Connection
Red
White
Bare
Blue
Black
-V
+V
CAN - High
Shield
CAN - Low
