Install POINT I/O Modules 41
Channel Output
Terminal
Common
Terminal
Power
004
115
226
337
44399
L1 =120/220V AC Supply
L2/N = 120/220V AC Return
Ch 0 = Channel 0 Ch 2 = Channel 2
Ch 1 = Channel 1 Ch 3 = Channel 3
Field power is supplied from the internal power bus.

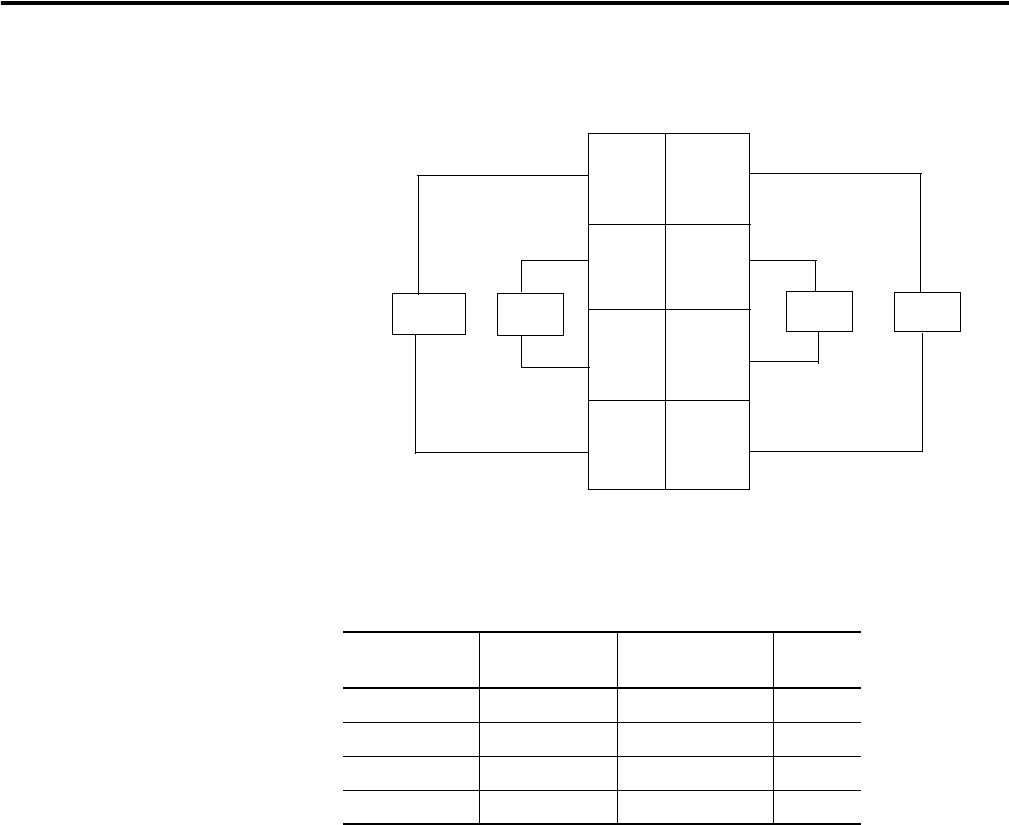

1734-OA4 AC 2 Output Module Wiring Diagram
Ch 1
L2/N
L2/N
L2/N
Ch 3
L2/N
Ch 0
Ch 2
1
6
4
2
0
3
5
7
Load
Load
Load
Load
