Placing Originals
14
1
Placing Originals on the
Exposure Glass
Reference
For related default settings, see
p.156 “Eject Copy Face Up / Down
in Glass Mode”.
A
AA
A
Lift the ADF.
Important
❒ Do not lift the ADF forcefully.
Otherwise, the ADF cover
might open or be damaged.
Note
❒ Be sure to lift the ADF more
than 30°. Otherwise, the size of
the original might not be detect-
ed correctly.
B
BB
B

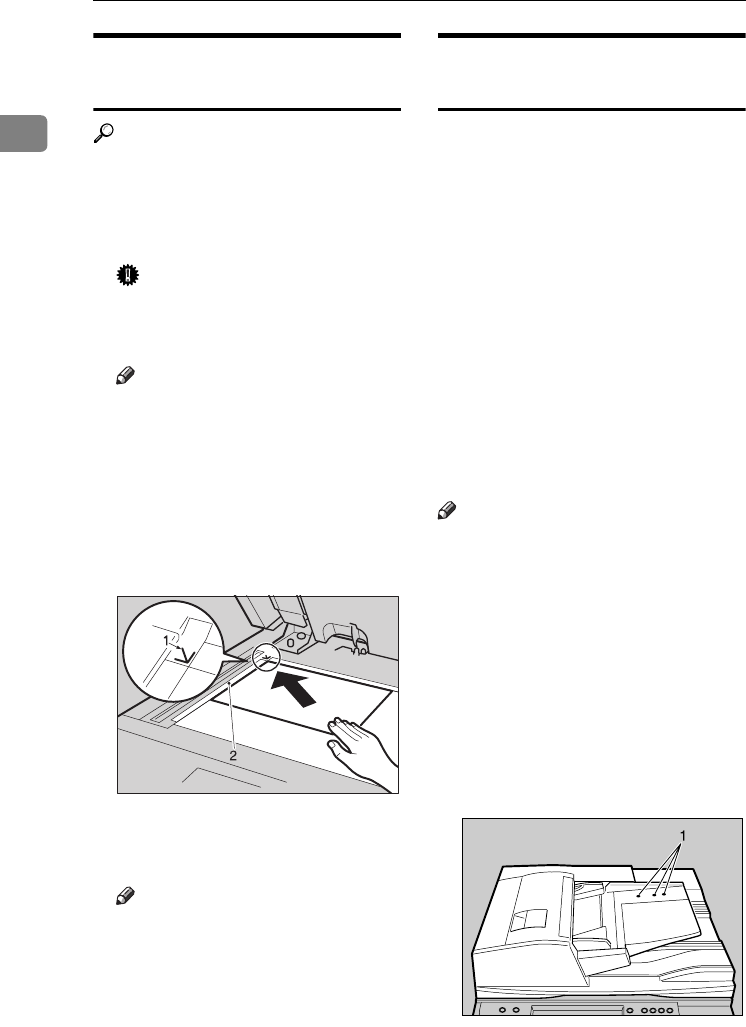

Place the original face down on
the exposure glass. It should be
aligned with the left scale.
1.
Positioning mark
2.
Left scale
Note
❒ Start with the first page to be
copied.
C
CC
C
Lower the ADF.
Placing Originals in the Auto
Document Feeder
Settings should be made accordingly
in the following situations:
❖
❖❖
❖ When placing originals consisting of
more than 100 pages:
p.15 “Batch”
❖
❖❖
❖ When placing originals one by one:
p.15 “SADF”
❖
❖❖
❖ When placing originals of the same
width but different sizes:
p.16 “Placing originals of mixed
sizes”
❖
❖❖
❖ When placing custom size originals:
p.17 “Placing custom size origi-
nals”
Note
❒ Do not stack originals above the
limit mark on the side guide of the
ADF.
❒
The last page should be on the bottom.
❒ When you copy two-sided origi-
nals, both front and back sides of
each original are scanned at once.
❒ Do not place objects on the sensors
or cover them with your hands, or
the original size may not be detect-
ed properly.
1.
Sensors
ZGMH012E
ADB028S
