Maintenance
Replacing a Fuse
62
3 Loosen the two thumb screws that secures the card.
4 Insert the new I/O Interface card and tighten the thumb screws. Do not
overtighten the fasteners.
5 Using the packaging materials from the replacement card, repackage the
failed card and return it to nStor Corporation. Refer to the nStor Resource
Guide for information on “Obtaining a Return Material Authorization.”
Replacing a Fuse
CAUTION: Power off the subsystem and disconnect the power cord before
changing the fuse.
1 Locate the fuse holder on the rear panel of the CR8e.
2 Using a small coin, turn the fuse holder counter-clockwise one quarter turn,
releasing the holder from its locked position.

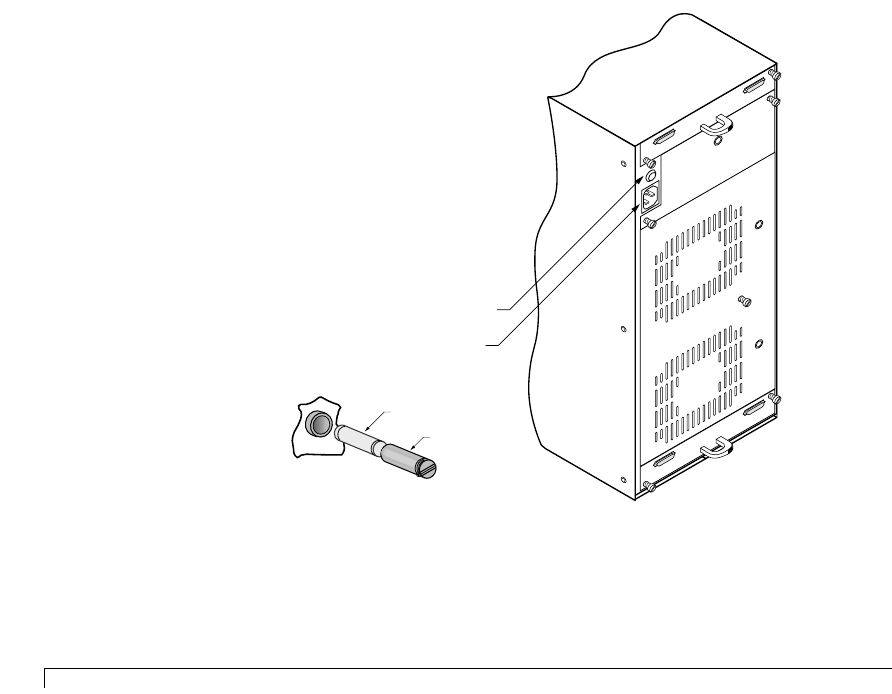

Fuse Assembly
Power Connector Module
250V
Fuse (250V 10A)
Fuse Holder
