NEC Versa M320 Disassembly Manual
Page 21
Removing the Floppy Disk Drive
To remove the FDD, first remove the Top Cover (see Removing the Top Cover), then perform
the following steps:
1. Remove the screw retaining the FDD and disconnect the FDD flat cable connector as
shown in Fig. 37.

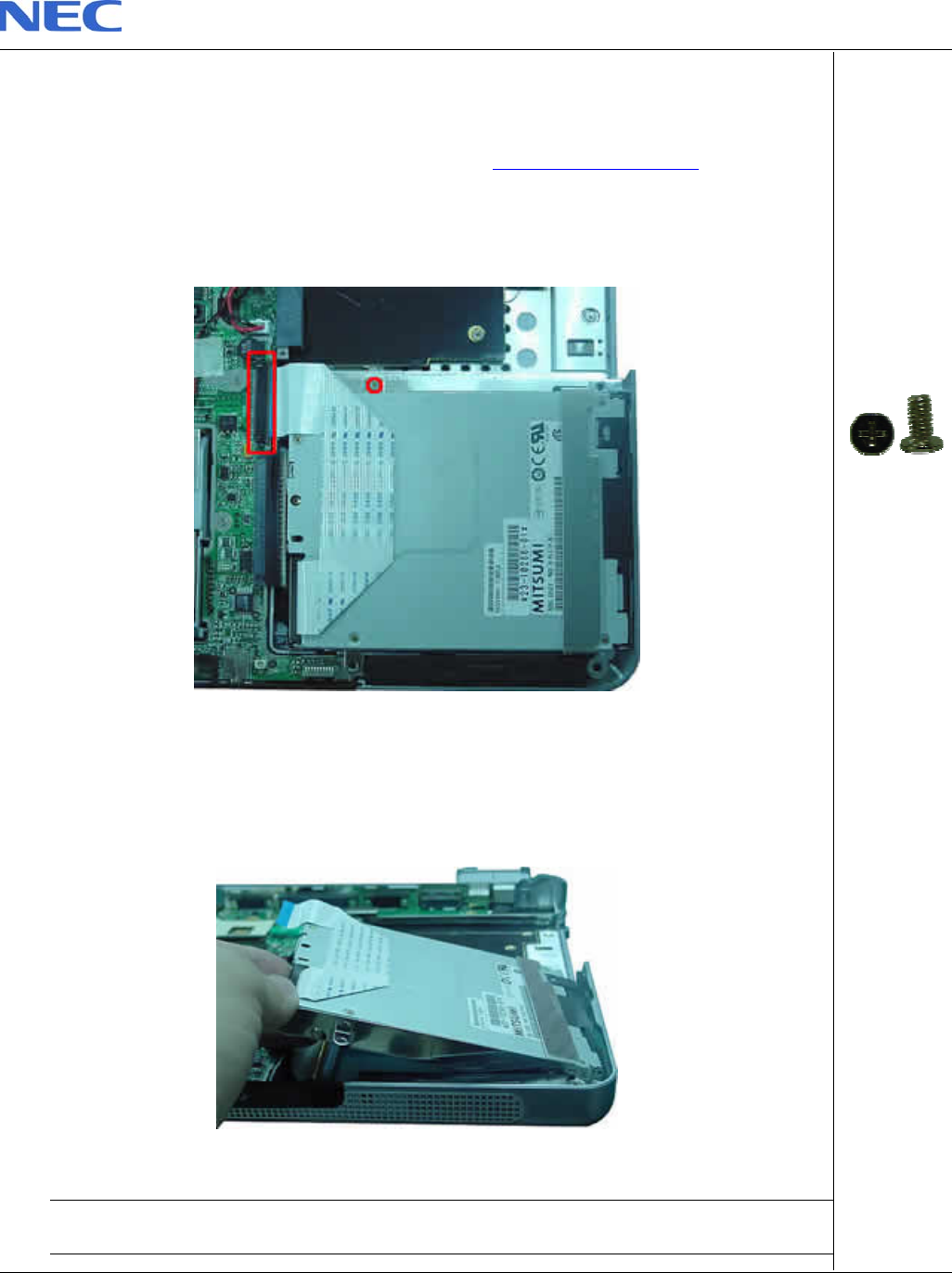

Fig. 37 Removing the FDD
2. Carefully remove the floppy disk drive as shown in Fig. 38
Fig. 38 Lifting up the FDD
Note: Be aware that there is a Mylar sticker on top of the FDD and bottom cover. Make sure that it
proper sticks when assembling.
M2x4.5 Silver
