NEC Versa M320 Disassembly Manual
Page 18

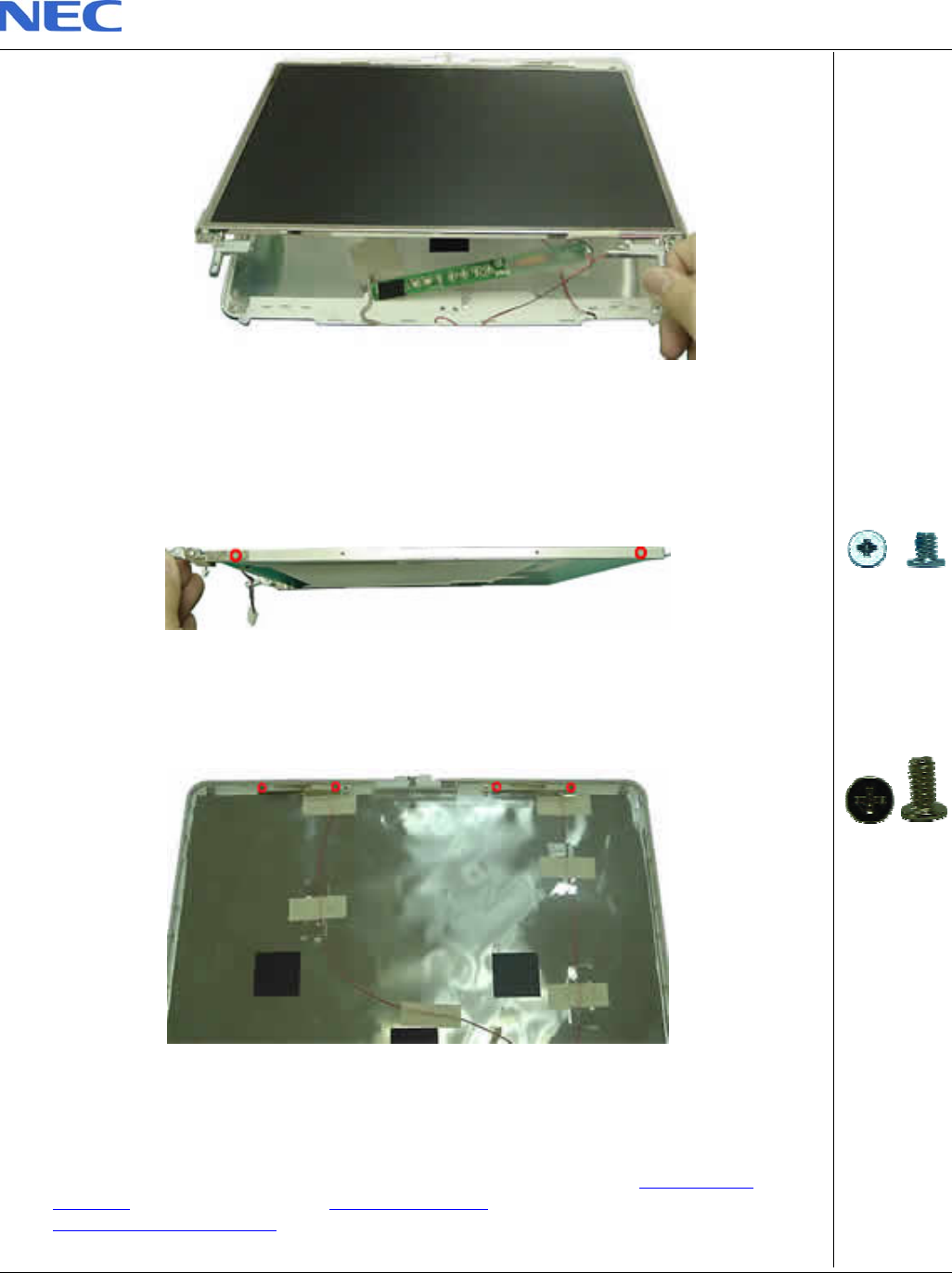

Fig. 30 Lifting up the LCD panel and disconnecting the inverter board
6. Remove the screws on both sides of the LCD panel in order to release the LCD hinges as
shown in Fig. 31
Fig. 31 Removing the LCD Panel hinges
7. Remove the screws on both sides of the wireless antenna as shown in Fig. 32, release the
wires from the adhesive tapes and put the wireless antenna aside.
Fig. 32 Removing Wireless Antenna
Removing the Top Cover
To remove the Top Cover, first remove then remove the keyboard (see Removing the
keyboard), remove the CPU (see Removing the CPU), remove the LCD module (see
Removing the LCD Module) then perform the following steps:
M2x3 Silver
M2x4.5 Silver
