Chapter 2
2-22

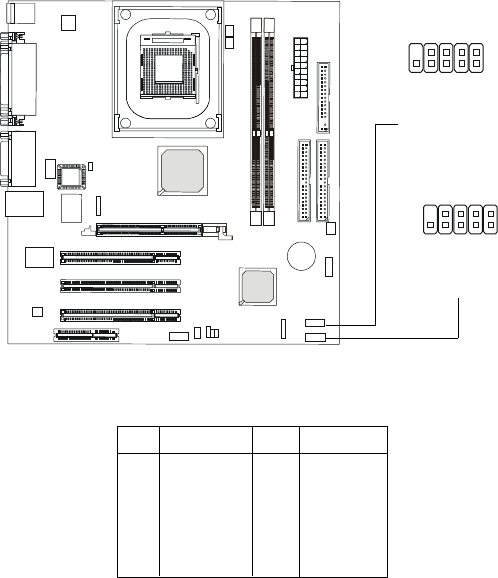

Front USB Connectors: JUSB1 & JUSB4
The mainboard provides two front Universal Serial Bus connectors for
you to connect to USB devices. JUSB1 & JUSB4 are compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
Pin Description Pin Description
1 USBPWR 2 USBPWR
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
9 NC 10 USBOC
JUSB1 & JUSB4 Pin Definition
JUSB4
1 9
2
10
JUSB1
1 9
2 10
