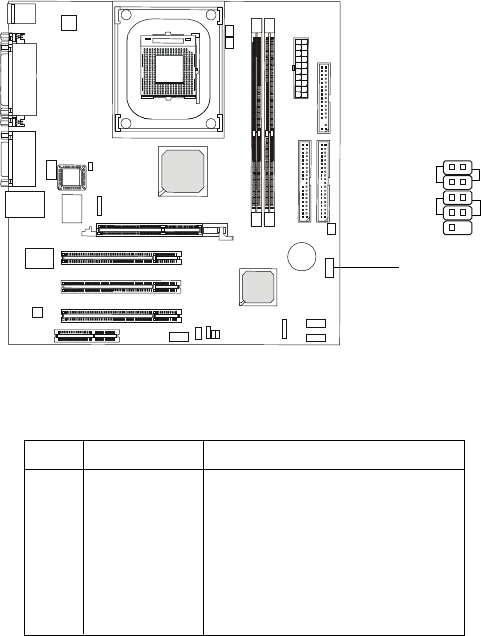

Front Panel Connector: JFP1
The mainboard provides one front panel connector for establishing elec-
trical connection to the front panel switches and LEDs. JFP1 is compliant with
Intel
®
Front Panel I/O Connectivity Design Guide.
JFP1
10
1
9
2
HDD
S
PWSW
RST
-
LED
P
+
+
-
-
+
PIN SIGNAL DESCRIPTION
1 HD_LED_P Hard disk LED pull-up to +5V
2 FP PWR/SLP MSG LED pull-up to +5V
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up to +5V
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up to +5V
7 RST_SW_P Reset Switch high reference pull-up to +5V
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.
JFP1 Switch/LED Front Panel Electrical Connection
