2-15
Hardware Setup
Jumper

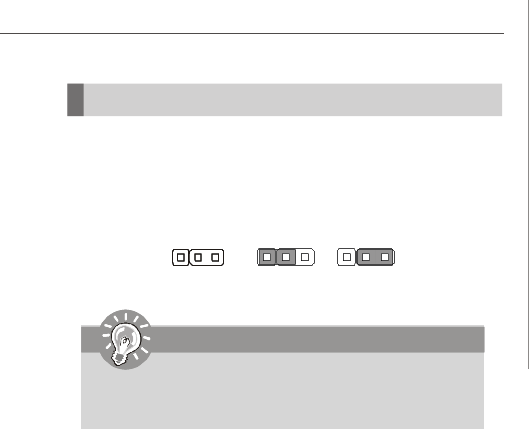

Clear CMOS Jumper: CLR_CMOS1
There is a CMOS RAM onboard that has a power supply from an external
battery to keep the data of system configuration. With the CMOS RAM, the
system can automatically boot OS every time it is turned on. If you want to
clear the system configuration, set the jumper to clear data.
Keep Data
1
3 3
1
Clear DataCLR_CMOS1
Important
You can clear CMOSa by shorting 2-3 pin while the system is off.
Then return to 1-2 pin position. Avoid clearing the CMOS while
the system is on; it will damage the mainboard.
