MS-7265 Mainboard
2-12

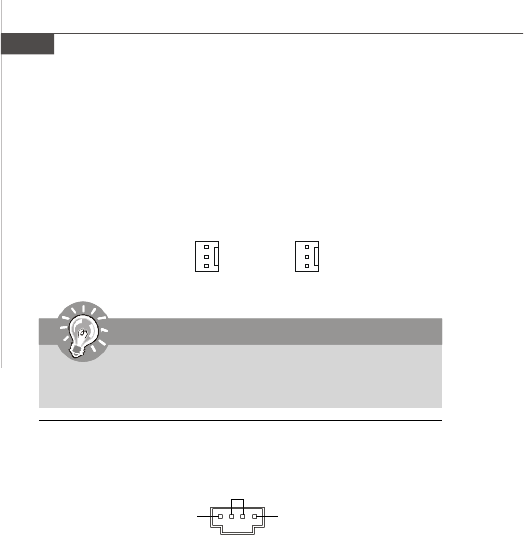

Fan Power Connectors: SYSFAN1, CPUFAN1
The fan power connectors support system cooling fan with +12V. When
connecting the wire to the connectors, always note that the red wire is the
positive and should be connected to the +12V; the black wire is Ground and
should be connected to GND. If the mainboard has a System Hardware Monitor
chipset on-board, you must use a specially designed fan with speed sensor to
take advantage of the CPU fan control.
SYSFAN1
SENSOR
+12V
GND
CPUFAN1
SENSOR
+12V
GND
Important
Please refer to the recommended CPU fans at processors offi-
cial website or consult the vendors for proper CPU cooling fan.
Aux Line-In Connector: TVIN1
This connector is provided for external audio input.
TVIN1
GND
RL
