Cable Connections
Core I/O Connections
Chapter 5
69
Core I/O Connections
The locations of interface connectors on the hp Integrity cx2600 Server rear panel are shown in Figure 5-2.
Each hp Integrity cx2600 server core I/O includes:

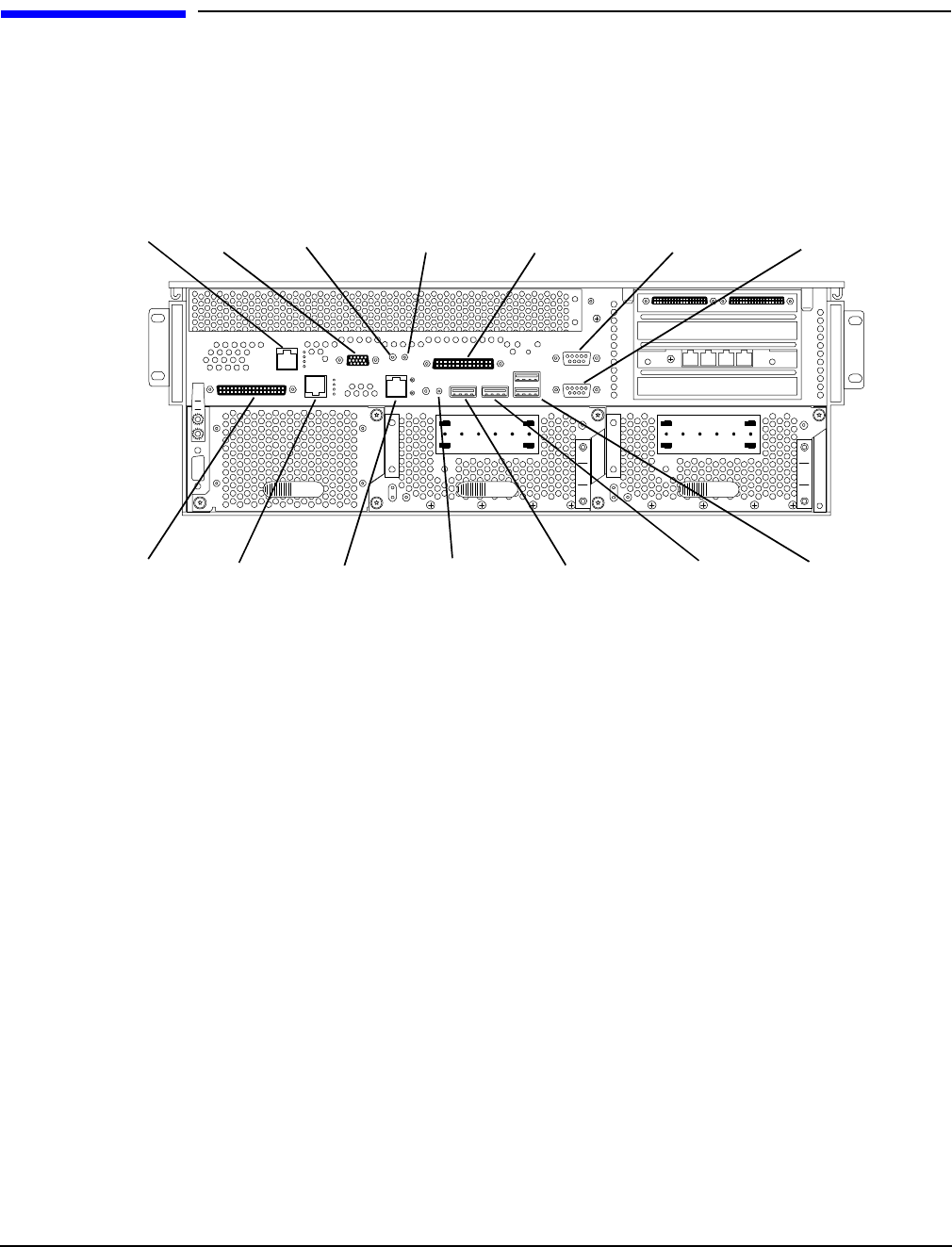

Figure 5-2 hp Integrity cx2600 Server (rear view)
One USB Keyboard connector
One USB Mouse connector
•Two USB ports
Two serial ports (A and B)
One tri-port serial connector (Console, Remote, and UPS) for connection breakout cable
VGA controller connector
One System Management (10/100) LAN -RJ45
One 10/100 LAN-RJ45
•One 1 Gb LAN-RJ45
One Management Processor (MP) LAN -RJ45
SCSI LVD/SE connector.
Four PCI Connections (0 to 4 PCI cards may be used)
Fault
DC Out DC In
Fault
DC Out DC In
rearview
MP
VGA
MP LAN
Console/
Remote/
UPS
Locator Button
and LED
Serial Port B
Serial Port A/
Console
USB Port
Mouse
USB Port
Keyboard
USB Port
TOC
Button
10/100 System
Management
LAN
Gigabit
Ethernet
LAN
LVD/SE
SCSI
MP Reset
Switch
