Installing Additional Components
Installing Processors and Memory
Chapter 3
46

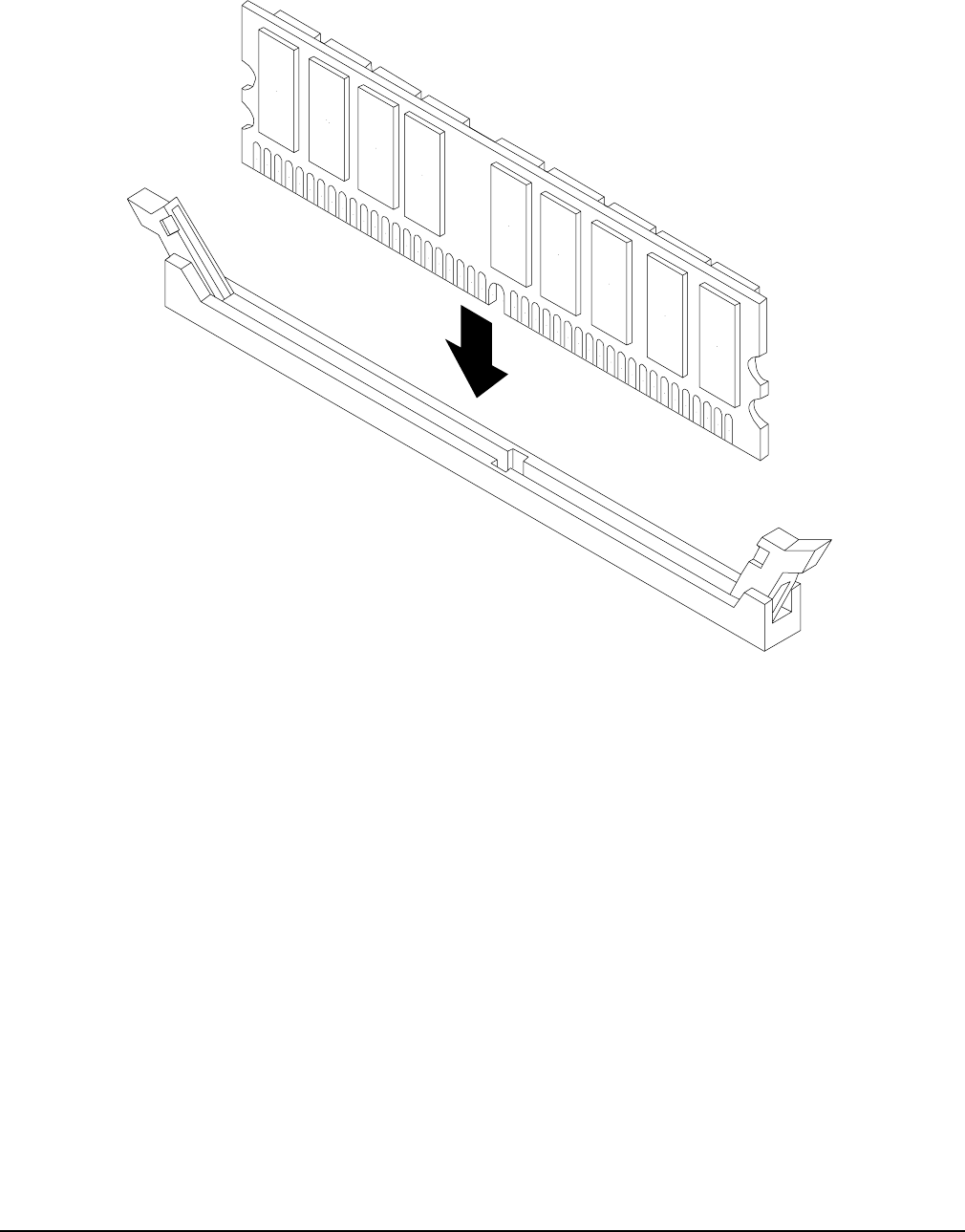

Figure 3-22Inserting DIMM into a DIMM Socket
Step 9. Snap the socket retainer clips into place, ensuring that the DIMM is locked in the socket.
Step 10. Repeat steps 6 through 9 for each DIMM to be installed.
Step 11. Set the memory airflow guide in position and reinstall the top cover.
dimm_sokt
