158 Removing and replacing parts Q1860-90918
Accessory interface connector
1 Remove the top cover (see page 115), and the left side cover (page 123).
2 Disconnect the two cables (callout 1) from the connector.
3 Remove the two self-tapping screws (callout 2).

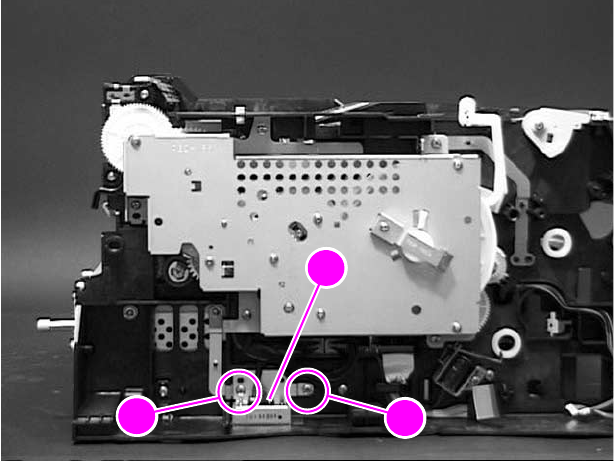

Figure 91. Accessory interface connector removal (left side of printer)
4 Remove the connector.
2
2
2
1
2
2
