PowerTALK 101
31
PowerTALK 98 examples

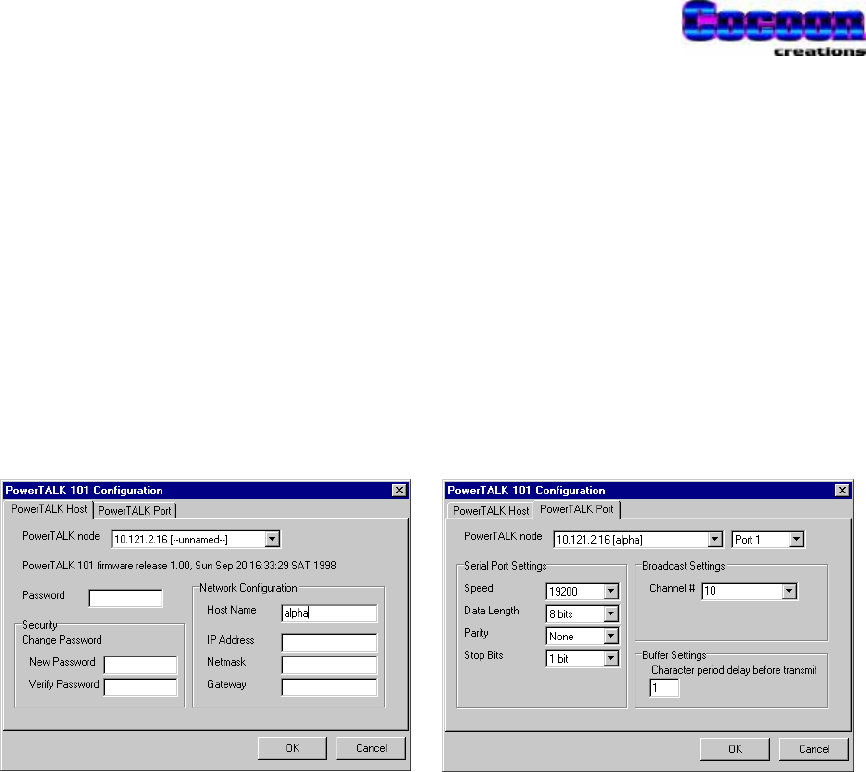

Double clicking on a selected PowerTALK 101 unit on the main screen results in either of the
following screens to pop up. These screens may be used to set up both network and serial port
parameters.
Note the password must be set correctly for any change to take effect:
Change TCP/IP network configuration Change serial port details
• A
Password
needs to be set according to
the password previously set on the PT unit
• A
New Password
on the unit may be set
• An arbitrary
Host Name
may be assigned
to a unit
• A second
IP address
,
Netmask
&
Gateway
may be configured as used in the
user network
A connected unit and port may be selected
Serial Port Settings
such as baud rate, word
length, etc. may be changed
The port may be assigned to a
channel
number
, see p47 for details
The unit’s
Buffer Settings
may be changed. A
TCP/IP packet will be transmitted after a delay
time equivalent to the max. transmission time
of the specified number of bytes (at 10 bits per
byte at the current baud rate).
