Installation
39
801539
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

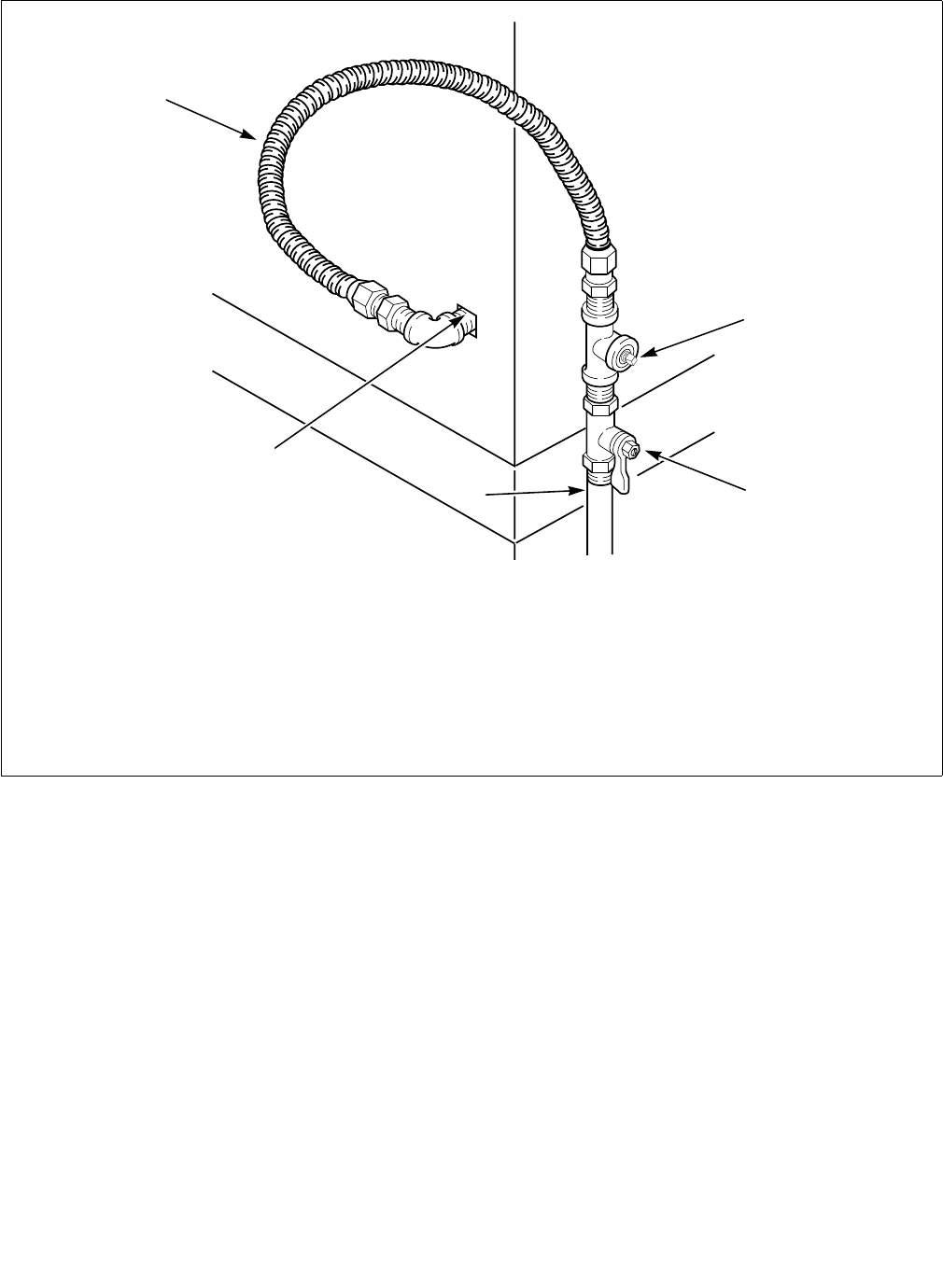

Figure 31
D434I
1 New Stainless Steel Flexible Connector –
Use only if allowed by local codes
(Use Design A.G.A. Certified Connector)
4 Black Iron Pipe
Shorter than 20 ft. (6.1 m) – Use 3/8 in. pipe
Longer than 20 ft. (6.1 m) – Use 1/2 in. pipe
2 1/8 in. N.P.T. Pipe Plug
(For checking inlet gas pressure)
5 3/8 in. N.P.T. Gas Connection
3 Equipment Shut-Off Valve – Installed within 6 ft.
(1.8 m) of dryer
1
5
4
2
3
