10

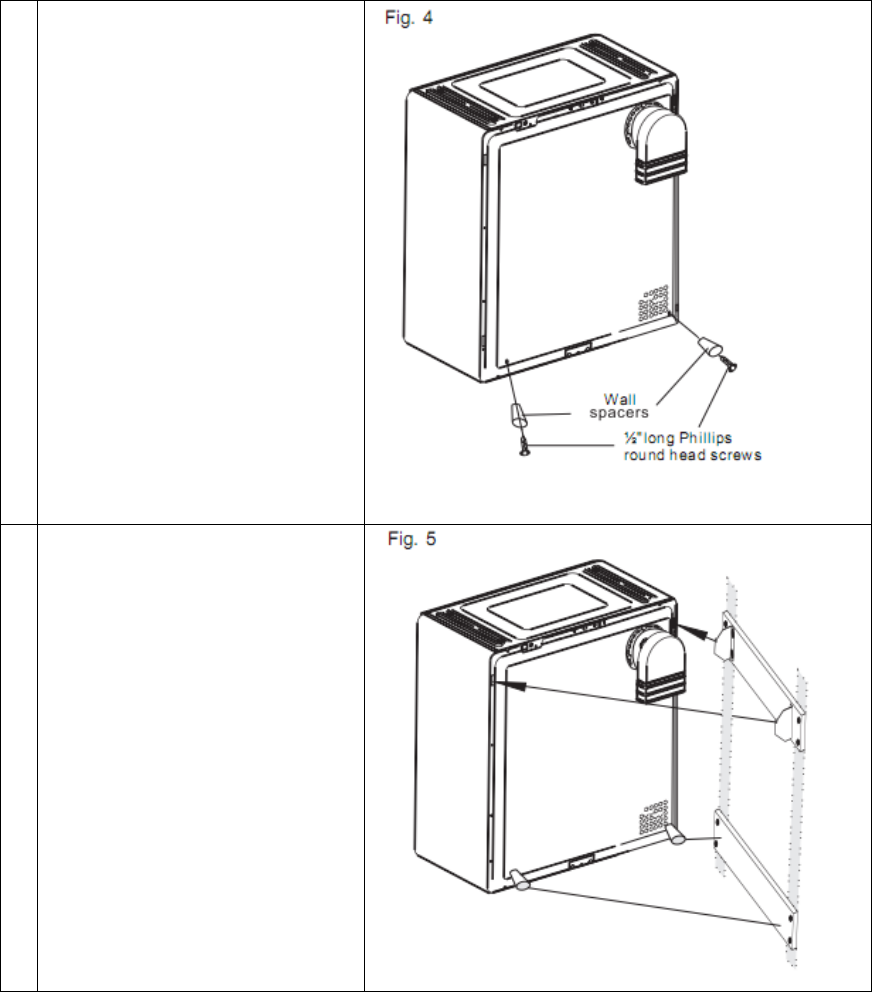

f) Install the lower wall spacers
(included) using the (2 ) ½” long
Phillips Round head screws
(included).
These spaces are required when
installing the unit on the wall to allow
the necessary ventilation for efficient
operation.
Failure to install the spacers will
both reduce the ventilation needed
to operate your unit as well as put
the appliance in tilted position on the
wall which could present a possible
unstable wall installation.
g) Mounting the dryer to the wall
hanging assembly.
With the assistance of 2nd person
lift the dryer and align the mounting
holes at the rear of the dryer with
the mounting brackets.
Tilting the dryer to a 45º angle insert
the hanging brackets into the
mounting holes on the dryer as
shown in the figure to the right.
Once the dryer mounts are in place
slowly lower the dryer in place and
check all installation points for stress
or weakened contact.
