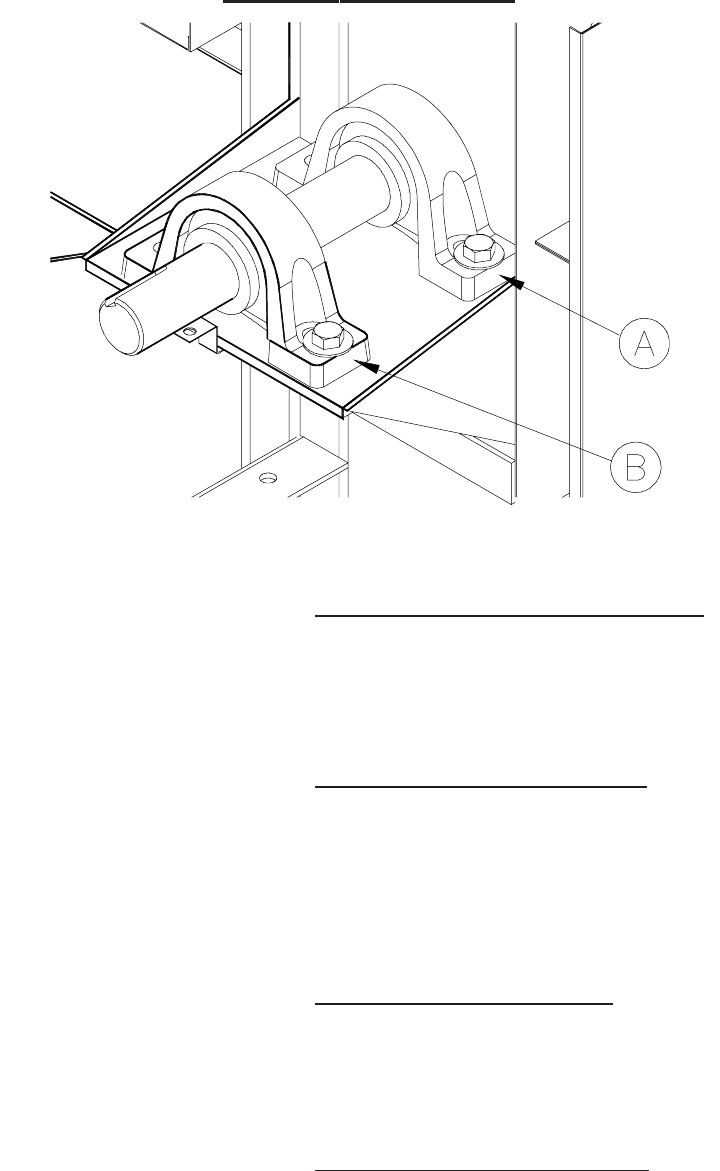

BASKET ALIGNMENT
Jacket Rear View
BASKET TOO LOW If there are shims under Bearing B;
1. Loosen bolts
2. Remove shim(s).
3. Tighten bolts - check alignment.
If there are no shims under B;
1. Loosen bolts on bearing A.
2. Add shim(s) under bearing A.
3. Tighten bolts - check alignment
4. Repeat until aligned.
BASKET TOO HIGH
If there are shims under A;
1. Loosen bolts
2. Remove shim(s).
3. Tighten bolts - check alignment.
If there are no shims under A;
1. Loosen bolts on bearing B.
2. Add shim(s) under bearing B.
3. Tighten bolts - check alignment
4. Repeat until aligned
