© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
9
70392201 (EN)

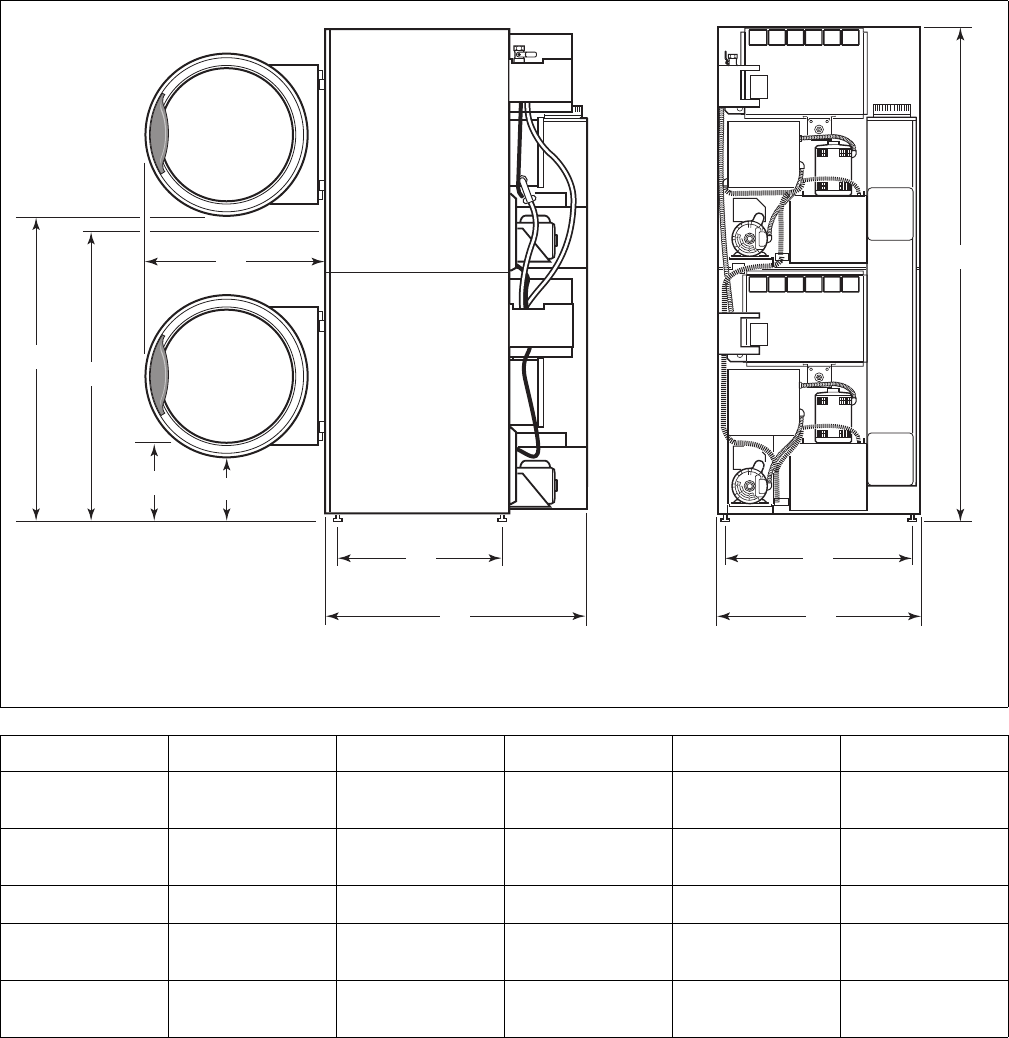

Cabinet Dimensions – T30 and T45
Models
N/A = Not Applicable
NOTE: To meet ADA compliance, install a 102 mm
(4 inch) riser on T30 models only.
TMB2230N
TMB2230N
C
E
F
H
J
B
D
G I
A
ModelsABCDE
T30
711 mm
(28 in.)
1219 mm
(48 in.)
1118 mm
(44 in.)
279 mm
(11 in.)
254 mm
(10 in.)
T45
810 mm
(31.88 in.)
1245 mm
(49 in.)
N/A N/A
229 mm
(9 in.)
Models F G H I J
T30
636 mm
(25.02 in.)
1086 mm
(42.76 in.)
695 mm
(27.38 in.)
800 mm
(31.5 in.)
1937 mm
(76.25 in.)
T45
746 mm
(29.37 in.)
1235 mm
(48.62 in.)
775 mm
(30.50 in.)
876 mm
(34.5 in.)
2063.75 mm
(81.25 in.)
