22 Parts
MAN0064 (Rev. 7/20/2007)

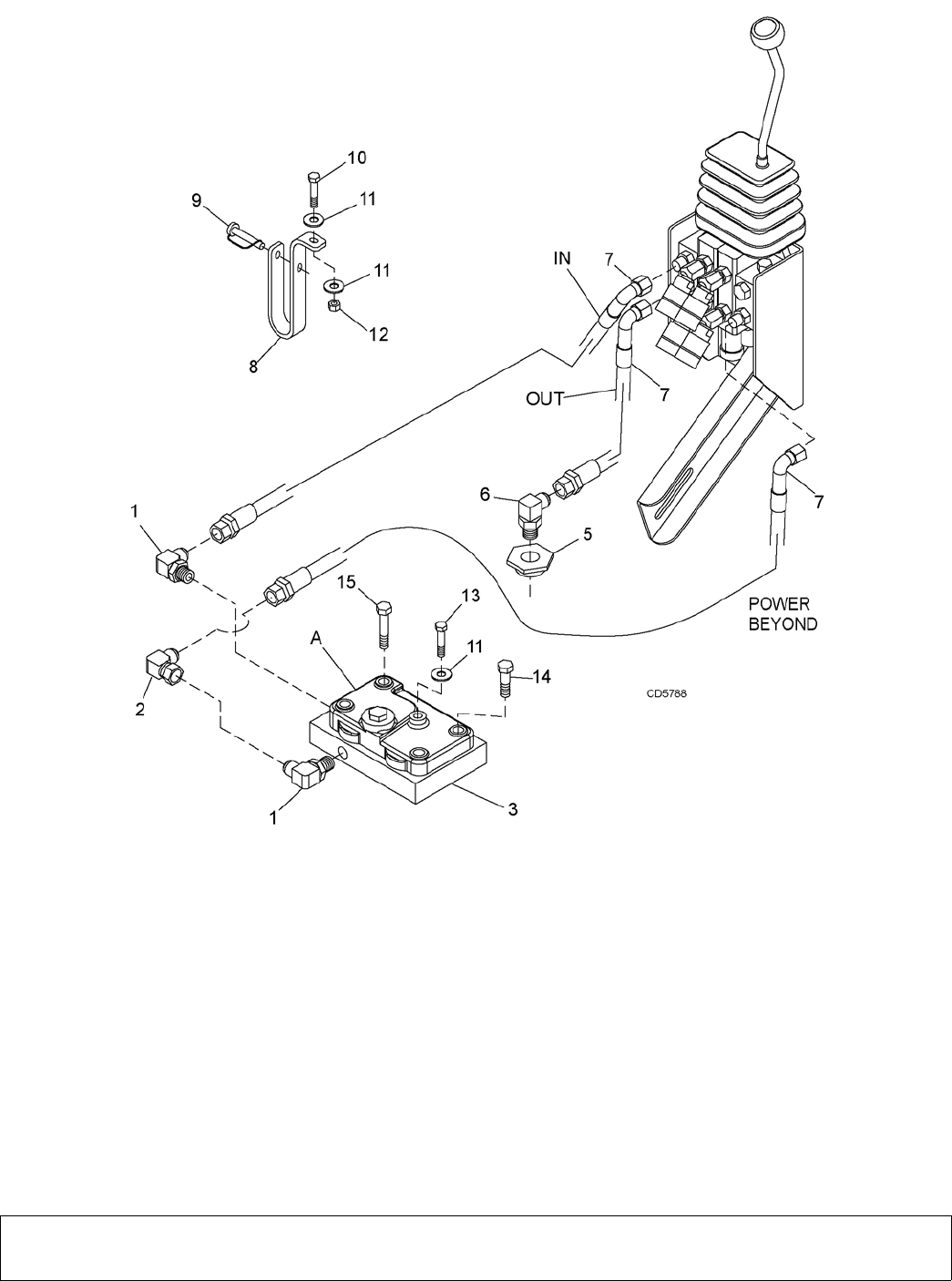

1001420 HOSE KIT
(1020/1027 LOADERS)
REF PART QTY DESCRIPTION
A ——— 1 Accessory plate (tractor part)
1 316004 2 Elbow, 3/4 JICM x 3/4 ORBM 90°
2 313032 1 Elbow, 3/4 JICM x 3/4 JICF 90°
3 1001421 1 Ford PBY Plate adapter
5 1001419 1 Adapter, 7/8 O-ring F x 1-3/8 Trd M
- or -
5 1001657 1 Adapter, 7/8 O-ring F x 1-5/8 Trd M
6 60 1 Elbow, 3/4 JICM x 7/8 ORBM
7 1001422 3 Hose, 86" x 3/4 JICF x 3/4 JICF
8 58033 1 Hose hanger bracket
9 58047 1 Pin lock 1/4 x 2-1/2
REF PART QTY DESCRIPTION
10 6250 * 1 5/16 NC x 1-1/4 HHCS GR5
11 4378 * 3 5/16 Standard flat washer
12 6778 * 1 5/16 NC Lock nut
13 21548 * 1 5/16 NC x 3-1/4 HHCS GR8
14 21549 * 2 7/16 NC x 3 HHCS GR8 ZP
15 1001423 * 2 7/16 NC x 4-3/4 HHCS GR8
16 88 * 4 Plastic tie (not shown)
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
