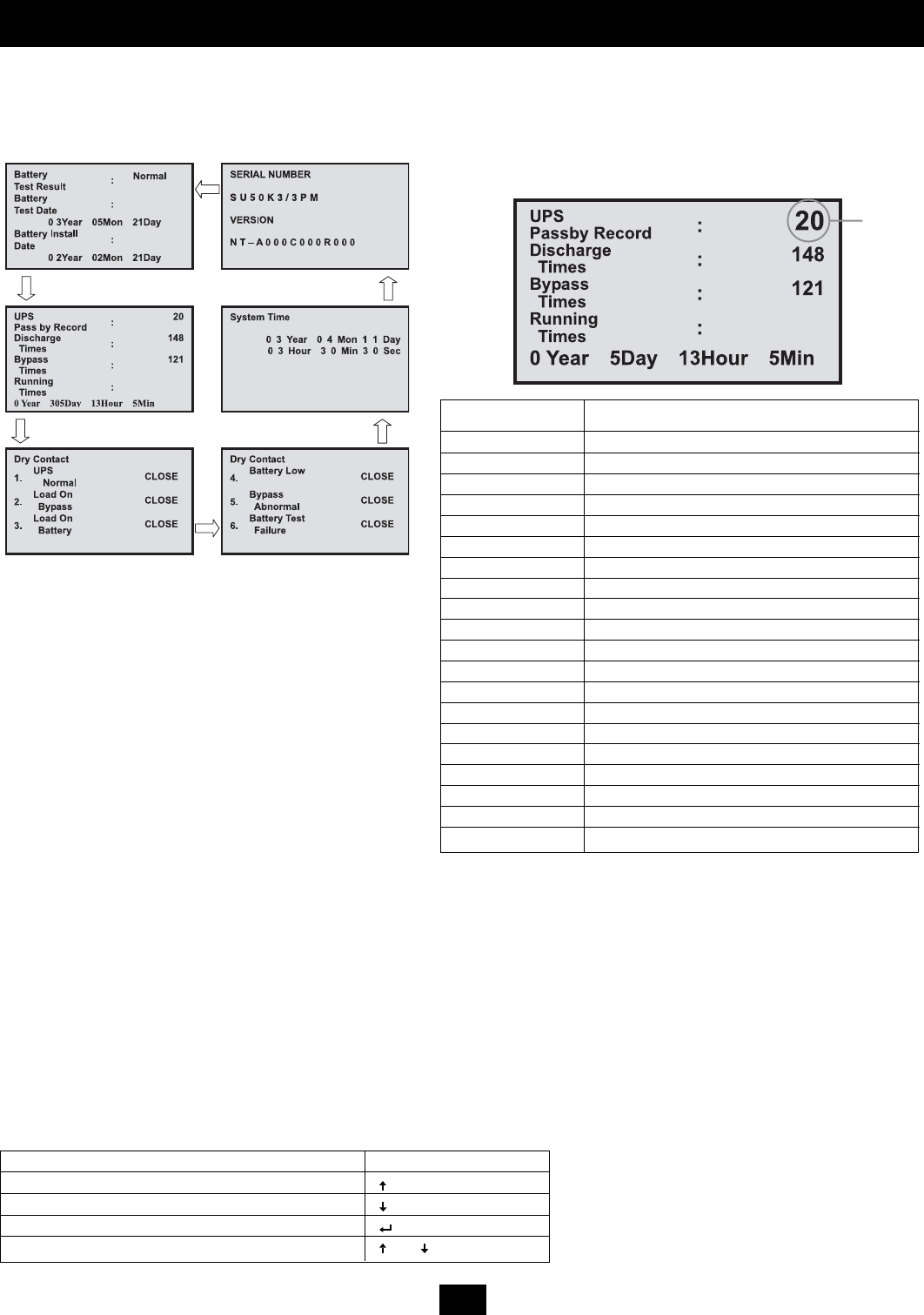

Note: a UPS Status Code is displayed in the upper-right corner of the
screen in the following display. Use the chart below to determine what
the UPS Status Code indicates.
Code Displayed UPS Status
0 Bypass Output Inhibited
2 Load on Reserve
10 Rectifier AC Soft-Start
18 Performing Inverter Test
20 Load on Inverter
22 Load on Inverter at Backup Mode
24 Low Battery
26 Low Battery Shutdown
28 Short-Circuit Shutdown
30, 58 Manual Bypass On
32 P.L.L. Abnormal
34 Inverter Fault Shutdown
36 Inverter Overload Shutdown
38 Remote Shutdown
40, 42, 44 Inverter Output Voltage Abnormal
46 EPO Event Shutdown
50 DC BUS Overvoltage Protection Shutdown
52, 54, 56 Inverter Fuse Open
60, 62, 64 Inverter Over-temperature Shutdown
66 Output Transformer Over-temperature Shutdown
LCD Navigation Key
Action Buttons to Push
Scroll Up Through Menu
Scroll Down Through Menu
Enter or Select a Menu Choice
Exit Current Menu and Return to Previous Menu and simultaneously
