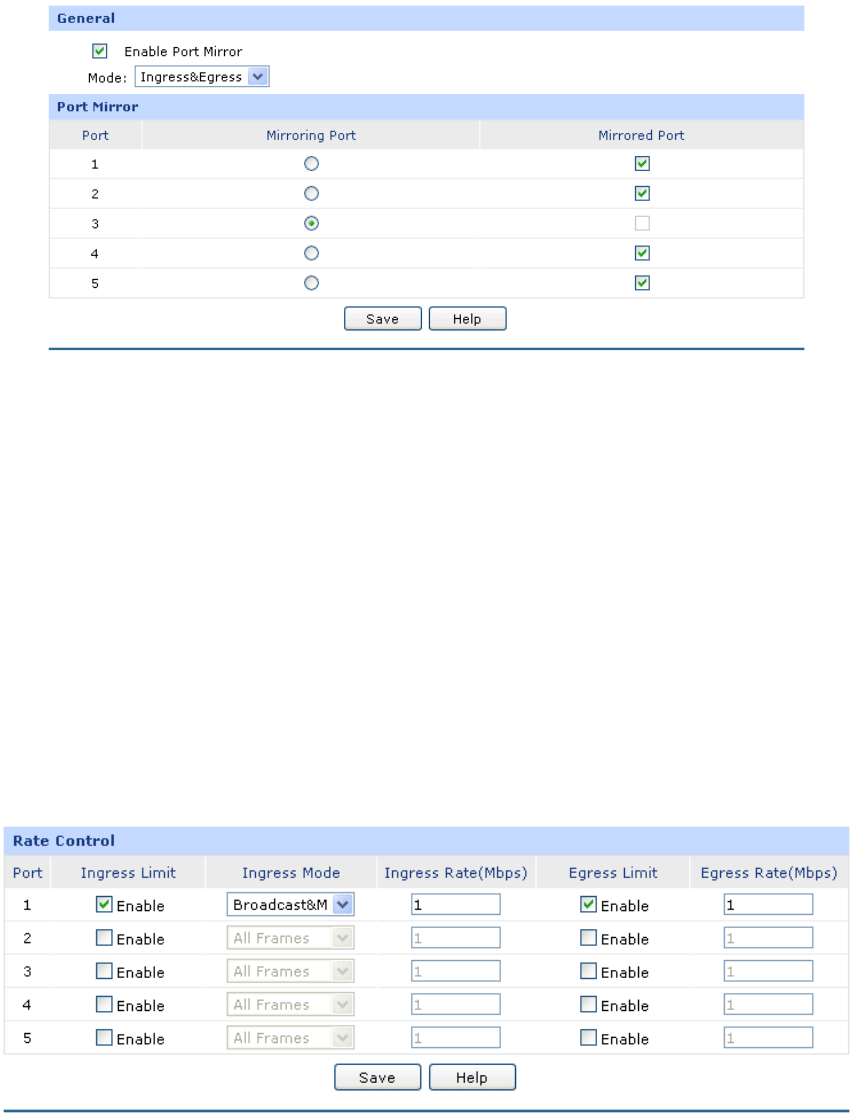

1) Check the box before Enable Port Mirror to enable the Port Mirror function and select the
Ingress & Egress mode.
2) Select Port 3 to be the Mirroring Port to monitor all the packets of the other ports.
3) Select all the other ports to be the Mirrored Ports.
4) Click the <Save> button to apply.
3.1.7.3 Rate Control
On this page, you can control the traffic rate for the specific packets on each port so as to manage your
network flow.
Choose the menu Network→Switch→Rate Control to load the following page.
Figure 3-22 Rate Control
The following items are displayed on this screen:
Rate Control
Port:
Displays the port number.
Ingress Limit:
Specify whether to enable the Ingress Limit feature.
-38-
