8·30

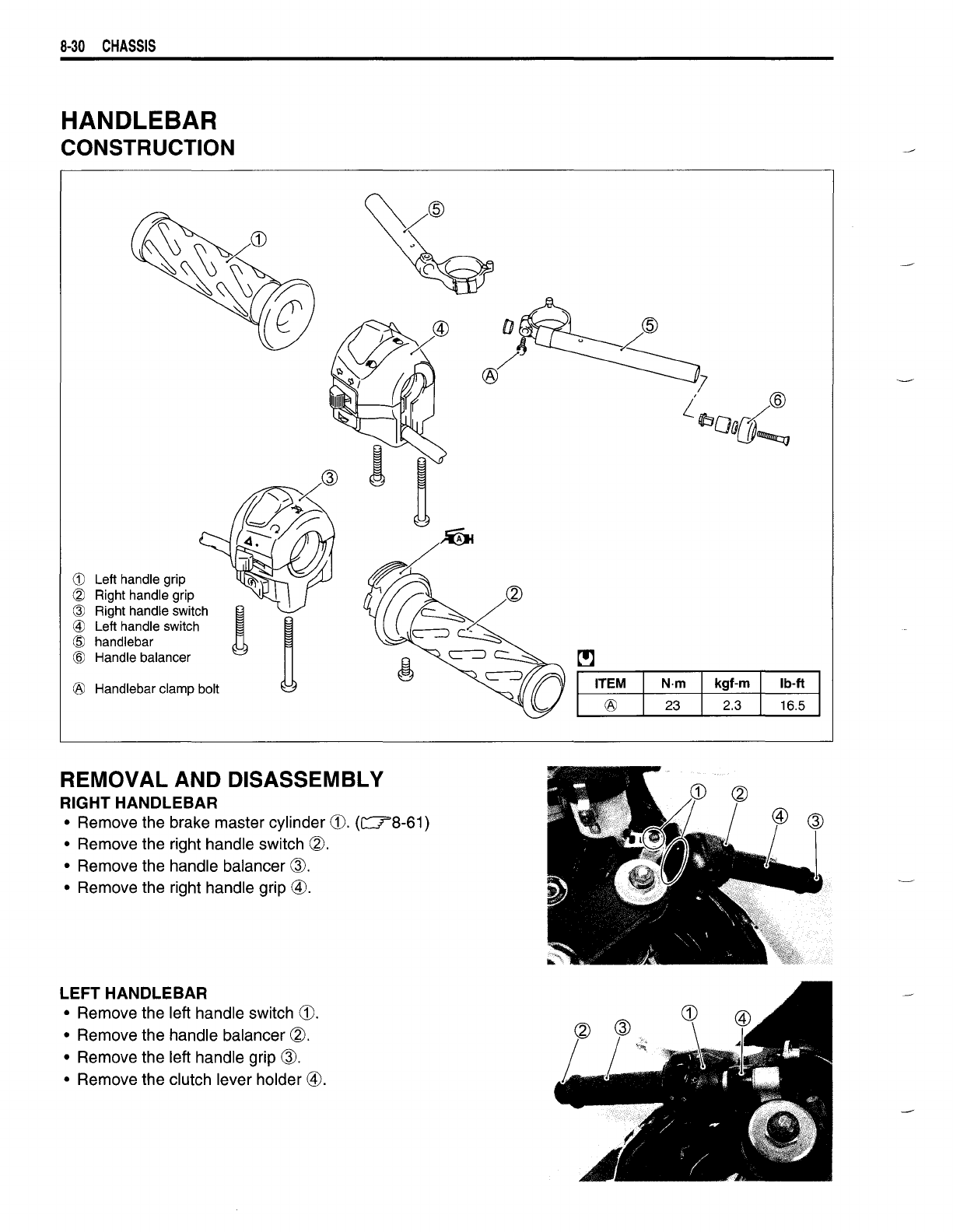

CHASSIS
HANDLEBAR
CONSTRUCTION
CD
Left handle grip
~
Right handle grip
@ Right handle switch
@ Left handle switch
@ handlebar
@ Handle balancer
® Handlebar clamp bolt
REMOVAL AND DISASSEMBLY
RIGHT HANDLEBAR
Remove the brake master cylinder G).
(c::78-61)
Remove the right handle switch
CZl.
Remove the handle balancer @.
Remove the right handle grip @.
LEFT HANDLEBAR
Remove the left handle switch G).
Remove the handle balancer
CZl.
Remove the left handle grip @.
Remove the clutch lever holder @.
ITEM
N·m
kgf-m
Ib-ft
®
23 2.3 16.5
