2-36
X8DAH+/X8DAH+-F/X8DAH+(-F)-LR User's Manual
JBT1
1
DP5
A
JPI2C1
CNF1
USB6/7
JLPC80
VGA (Top)
AUDIO
JPI1
JPG1
JWD1
JPT1
JPW2
JPW3
JPW1
SP1
FAN2
FAN6
FAN5
J14
JBAT1
JOH1
JL1
JI2C2
JI2C1
JD1
KB/MS
CD1
JIDE1
USB
2/3/4/5
JUSB2
SMBUS1
ALWAYS POPULATE DIMM1 FIRST
Slot7 PCI-E 2.0 x8
FAN3
FAN1
P2 DIMM3A
P2 DIMM3B
P2 DIMM2B
P2 DIMM2C
P2 DIMM2A
P2 DIMM3C
P2 DIMM1B
P2 DIMM1C
P2 DIMM1A
P1 DIMM3C
P1 DIMM3B
P1 DIMM2C
P1 DIMM2B
P1 DIMM1C
P1 DIMM1B
P1 DIMM3A
P1 DIMM2A
P1 DIMM1A
ALWAYS POPULATE DIMM1 FIRST
CPU2 FAN
FLOPPY
IDE
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1
Slot6 PCI-E 2.0 x16
Slot5 PCI-E 2.0 x4 (in x8 Slot)
Slot4 PCI-E 2.0 x8 (in x16 Slot)
Slot3 PCI-E 2.0 x8
Slot2 PCI-E 2.0 x16
LAN2 (Top)
COM1
(Bottom)
I-SATA0
PWR I2C
CPU1
CPU2
USB0/1
LAN1
COM2
Slot1 PCI-E 2.0 x8
DP4
CNF2
BIOS
FAN4
FPCTL
JF1
FAN7
FAN1
CPU
LAN
CTRL
BMC
Audio
CTRL
BMC
Firmware
CTRL
Intel
IOH-36D
Intel
ICH 10R
Intel
(SouthBridge)
X8DAH+
AUDIO
Header
7.1HD
BMC Graphics
Memory
S I/O
1394
CTRL
1394-1 1394-2
IPMI LAN
PHY
Chip
JPL1
J15
J139
JP4
JP5
JUSB5
JUSB4
Rev. 2.01
IOH-36D
(Bottom)
JP9
I-FAN1
I-FAN2

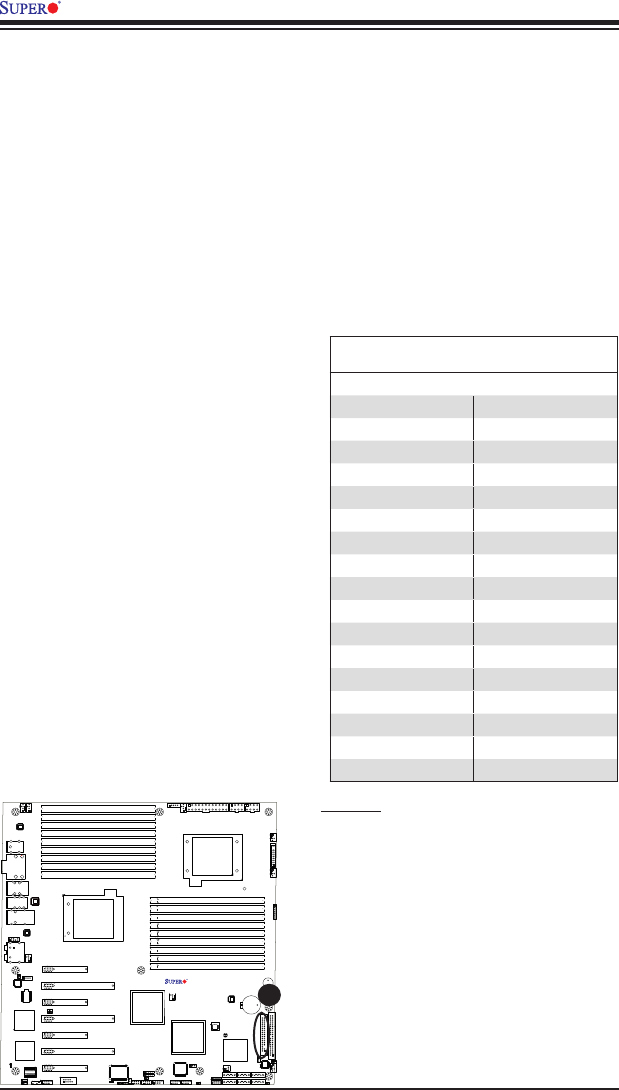

Floppy Connector
The oppy connector is located next
to the Super I/O chip on the mother-
board. See the table on the right for
pin denitions.
Floppy Drive Connector
PinDenitions
Pin# Denition Pin # Denition
1 Ground 2 FDHDIN
3 Ground 4 Reserved
5 Key 6 FDEDIN
7 Ground 8 Index
9 Ground 10 Motor Enable
11 Ground 12 Drive Select B
13 Ground 14 Drive Select B
15 Ground 16 Motor Enable
17 Ground 18 DIR
19 Ground 20 STEP
21 Ground 22 Write Data
23 Ground 24 Write Gate
25 Ground 26 Track 00
27 Ground 28 Write Protect
29 Ground 30 Read Data
31 Ground 32 Side 1 Select
33 Ground 34 Diskette
2-9 Floppy Drive, Serial ATA and SAS Connections
Note the following when connecting the oppy and hard disk drive cables:
•The oppy disk drive cable has seven twisted wires.
•A red mark on a wire typically designates the location of pin 1.
•A single oppy disk drive ribbon cable has 34 wires and two connectors to
provide for two oppy disk drives. The connector with twisted wires always
connects to drive A, and the connector that does not have twisted wires always
connects to drive B.
A. Floppy
A
