7-4. Setting of the DIP Switches
Factory settings : all ON
Switch Function ON OFF
1 Character Table U.S.A. & Europe Japan
2 Unused
3 CR cord Disable Enable
4 Unused
5 (*1) Ink Ribbon 2-color Monochrome
6
7 International Character Set (See below)
8
(*1) DIP Swich 5 should be set to ON when you use a 2-color ribbon
for 2-color printing.
It should be set to OFF when a monochrome ribbon is used.
International Character Set
SW NO. USA France Germany England Denmark Sweden Itary Spain
6 ON OFF ON OFF ON OFF ON OFF
7 ON ON OFF OFF ON ON OFF OFF
8 ON ON ON ON OFF OFF OFF OFF
Note: When DIP Switches 1 is set to OFF, the printer always selects the
Japan international character set regardless of the status of DIP
Switches 6, 7 and 8.
When DIP Swiches 1 is otherwise set, the printer selects the
character set determined by DIP Switches 6, 7 and 8.

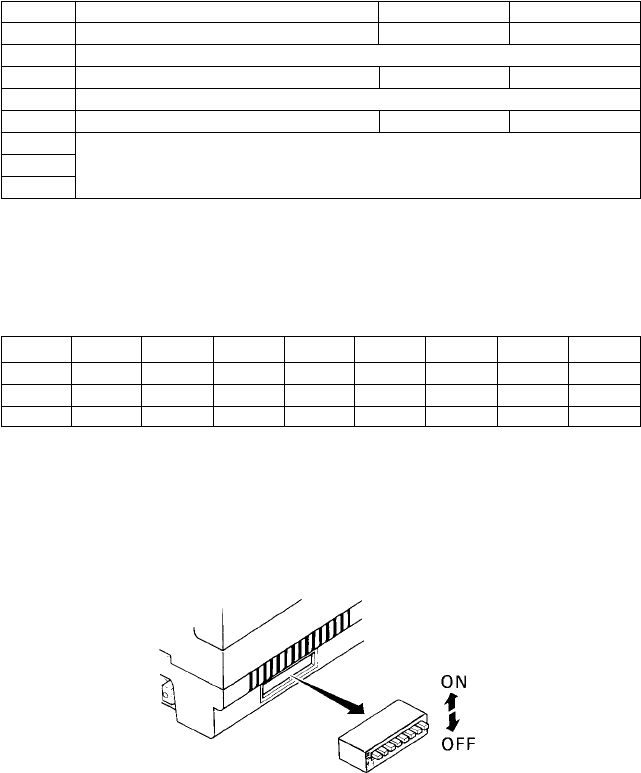

Figure 7-4. DIP Switch Setting
