CENTER SPAKER
INT
o
O
EXT
left front speaker
center speaker
CENTER MODE
Using an External Center
Speaker

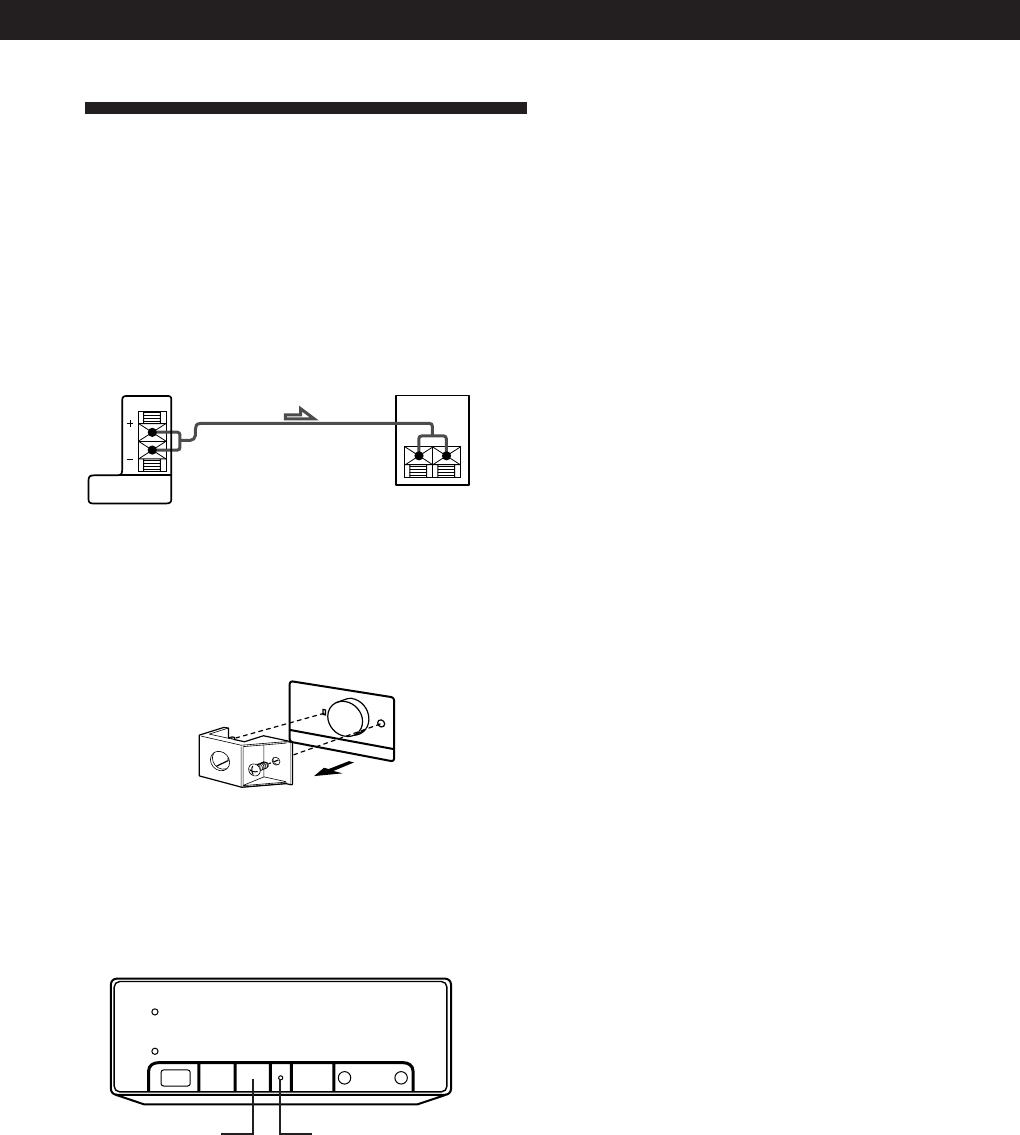

Since this system incorporates a center speaker (see
page 5), you don't have to connect a center speaker.
However, it is possible to connect a center speaker, if
you already have one, to the CENTER SPEAKER
terminals. Be sure to use a speaker with a 8 to 16 ohm
impedance for the center speaker.
Use a screwdriver and remove the screw holding the
CENTER SPEAKER button cover in place. Then
depress the CENTER SPEAKER button. This turns off
the internal center speaker and directs the center
channel signal to the CENTER SPEAKER terminals.
Connecting an external center speaker lets you choose
from 4 different Dolby Pro Logic Surround center
modes: NORMAL, WIDE, 3 CH (3 Channel logic), or
PHANTOM. Use the NORMAL or WIDE mode. For
details on Dolby Pro Logic Surround sound, see page
15.
1 Press SURROUND on the front left speaker to
choose PRO LOGIC. (“PRO LOGIC” appears in
the display instead of “DOLBY SUR” when you
connect an external center speaker.)
2 Press CENTER MODE on the front left speaker a
few times until the center mode you want appears
in the display.
SURROUND
EXTERNAL
CENTER SPEAKER
IMPEDANCE 8 - 16 Ω
3 Adjust the speaker volumes and delay time, if
necessary, by referring to pages 11 and 12.
Home Theater Operations
