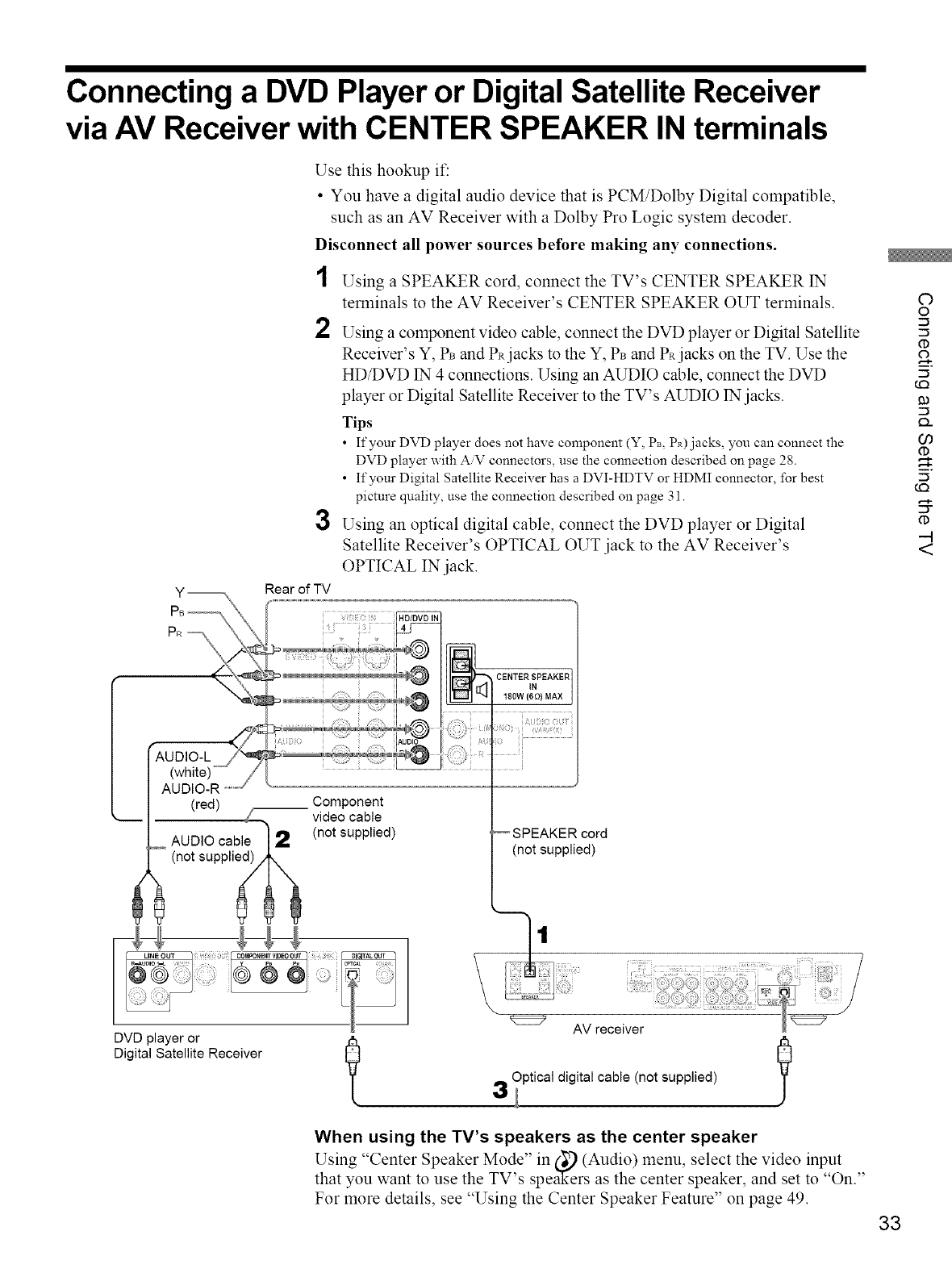

Connecting a DVD Player or Digital Satellite Receiver
via AV Receiver with CENTER SPEAKER IN terminals
Use this hookup if:
• You have a digital audio device that is PCM/Dolby Digital compatible,
such as an AV Receiver with a Dolby Pro Logic system decoder.
Disconnect all power sources before making any connections.
1
2
Using a SPEAKER cord, connect the TV's CENTER SPEAKER 1N
terminals to the AV Receiver's CENTER SPEAKER OUT terminals.
Using a component video cable, connect the DVD player or Digital Satellite
Receiver's Y, PB and PRjacks to the Y, PB and PRjacks on the TV. Use the
HD/DVD IN 4 connections. Using an AUDIO cable, connect the DVD
player or Digital Satellite Receiver to the TV's AUDIO IN jacks.
Tips
• If your DVD player does not have component (Y, Pm P_)jacks, you can connect the
DVD player with AiV connectors, use the connection described on page 28.
• If your Digital Satellite Receiver has a DVI-HDTV or HDMI connector, for best
picture quality, use the connection described on page 31.
3 Using an optical digital cable, connect the DVD player or Digital
Satellite Receiver's OPTICAL OUT jack to the AV Receiver's
OPTICAL IN jack.
y __, Rear of TV
II-Na-d<CENTERISPEAKER
AUDIOIL __//_ 3=_- i,:{'_ _
(red)
Component
-_ video cable
AUDIO cable I 2 (not supplied) _SPEAKER cord
i(not suppli_ (not supplied)
DVD player or
Digital Satellite Receiver
AV receiver
Optical digital cable (not supplied)
3_
©
O
o
5
¢O
_0
o..
(.Q
-4
<
When using the TV's speakers as the center speaker
Using "Center Speaker Mode" in _(_ (Audio) menu, select the video input ,,
that you want to use the TV s speakers as the center speaker, and set to On.
For more details, see Uslne, the Center Speaker Feature on pa_,e 49.
33
