53
Menu List
<AUTO IRIS> M05 AUTO IRIS OFF ON, OFF, (ON), (OFF) Settings in ( ): When a remote
control unit/panel or a CCU
is not connected (cannot be
changed)

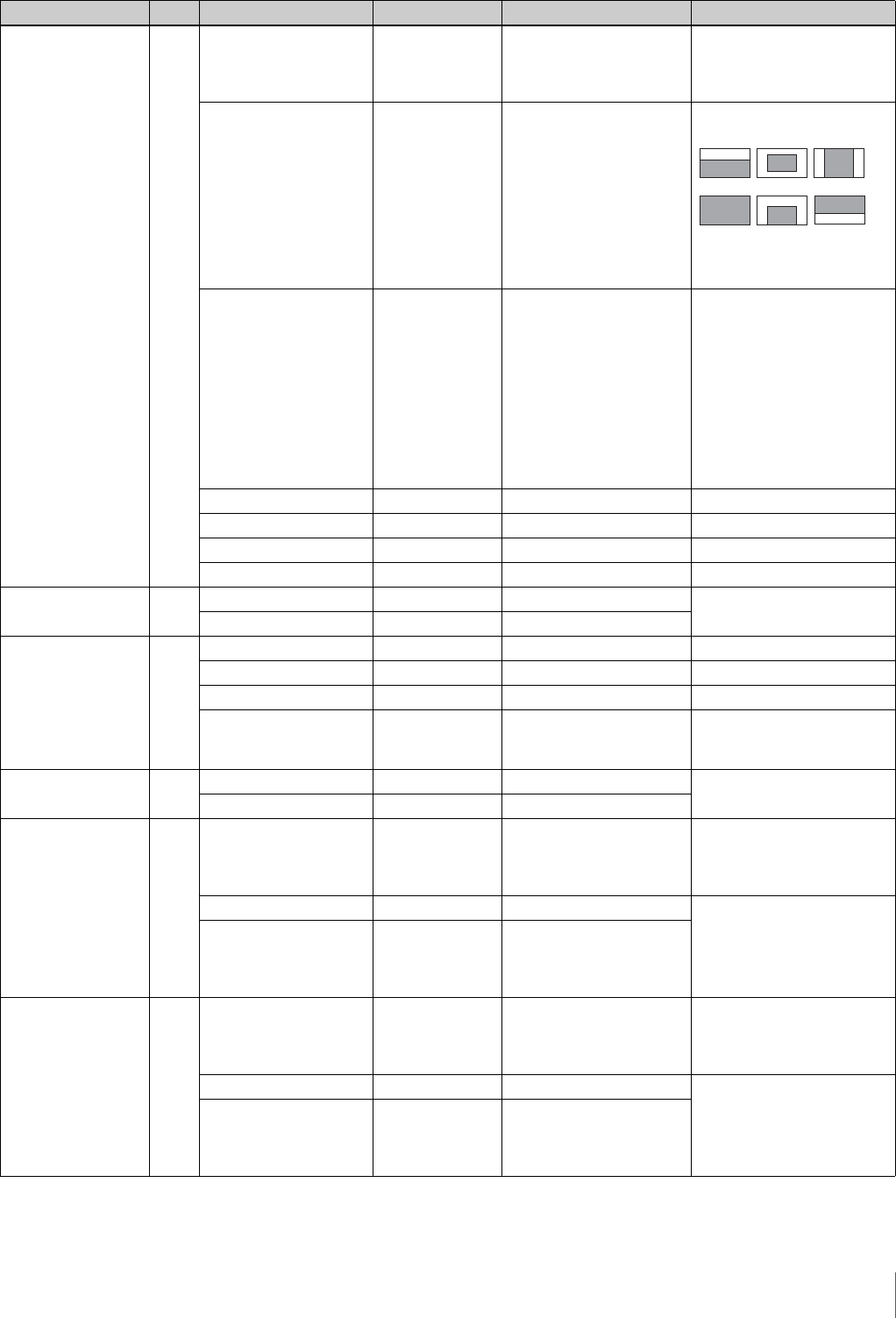

WINDOW 1 1, 2, 3, 4, 5, 6 Select the auto iris windows:
The shaded parts indicate the
area where light detection
occurs.
OVERRIDE - - –99 to 99, - - To set the override to
temporarily change the
reference value for brightness
of the automatic iris level in the
range of ±2 steps:
–99: two steps to fully closed
iris
99: two steps to fully open iris
- - : OFF
The setting returns to “ - - ”
when the power is turned off.
IRIS LEVEL 0 –99 to 99 ±4 steps
APL RATIO 65 –99 to 99
IRIS GAIN 0 –99 to 99
IRIS CLOSE OFF ON, OFF
<MIC GAIN> M06
(U15)
MIC1 60 dB 20, 30, 40, 50, 60 dB valid only in standalone
operation
MIC2 60 dB 20, 30, 40, 50, 60 dB
<UP TALLY> M07
(U21)
TALLY BRIGHTNESS 50 0 to 100
NUMBER BRIGHTNESS 50 0 to 100
CAMERA NUMBER - - - -, 1 to 96
NUMBER DISPLAY AUTO ON, OFF, AUTO AUTO: To correspond to the
UP TALLY switch setting of
HDLA attached
<CALL/TALLY> M08 CCU CALL ON ON, OFF, - - - - - - : With no CCU connected
(cannot be changed)
CAM CALL OFF ON, OFF, - - -
<OUTPUT FORMAT>
(HDC1500R)
M09
(U16)
CURRENT JN4/SYL models:
1080-59.94i
CED/E33 models:
1080-50i
Displays the current format.
ACTIVE LINE 1080 1080, 720 The selectable frame settings
are displayed for the selected
ACTIVE LINE.
(not displayed with CCU
connected)
JN4/SYL models:
59.94i
CED/E33 model:
50i
1080: 24PsF, 59.94i,
29.97PsF, 23.98PsF,
59.94P, 50i, 25PsF, 50P
720: 59.94P, 50P
<OUTPUT FORMAT>
(HDC1550R)
M09
(U16)
CURRENT UC7 model:
1080-59.94i
CED model:
1080-50i
Displays the current format.
ACTIVE LINE 1080 1080, 720 The selectable frame settings
are displayed for the selected
ACTIVE LINE.
(not displayed with CCU
connected)
UC7 model: 59.94i
CED model: 50i
1080: 59.94i, 29.97PsF,
23.98PsF, 50i, 25PsF,
24PsF
720: 59.94P, 50P
Menu page No. Item⁄ Default Settings Remarks
123
456
