19

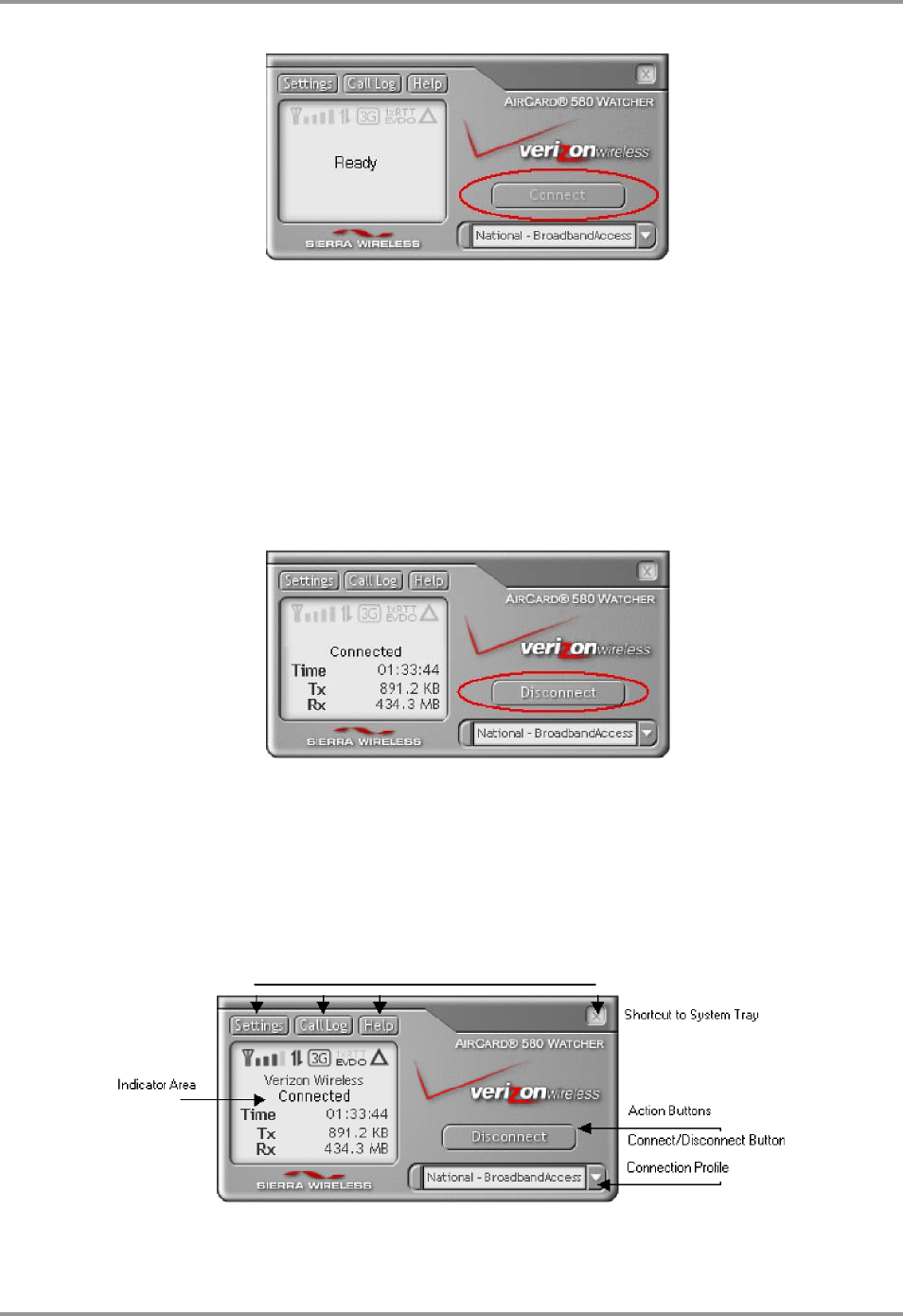

Figure 4-2: Watcher in Full Mode view - Connect action button
2. Watcher will take a few moments to connect to the network. Once a connection is established,
the dialog box at the bottom of the Watcher window displays the word “Connected,” notifying
that a connection has been established.
The
Connect button changes to read Disconnect.
Disconnect
1. To end the current connection, click the
Disconnect button.
Figure 4-3: Watcher in Full Mode view - Disconnect action button
2. The dialog box returns to the “
Ready” state, notifying that the current session is no longer
active.
Components of the Watcher window
Figure 4-4: Full Mode view of Watcher
Action Buttons
