Supplied accessories
Make sure the following accessories are provided with the product.
NOTE
• Always use the AC cord supplied with the TV.
• AC cord enclosed in this product is for 110-125V. In using it on the 125-240V AC, please consult to the following.
SHARP ELECTRONICS CORPORATION
6100 Blue Lagoon Drive, Suite 230, Miami, Florida 33126, U.S.A.
QUICK REFERENCE
Remote control unit (
g
1)
“AAA” size battery (
g
2)
Page 9
AC cord
(
g
1)
Page 8
Stand unit
(
g
1)
Page 7
Cable Clamp (
g
2)
Cable tie (
g
1)
Page 8
Speaker unit (
g
1)
Screwdriver (
g
1)
Screw (
g
4)
Page 6
Stand hole cover
(
g
2)
Page 6
■
Operation manual (
g
1)

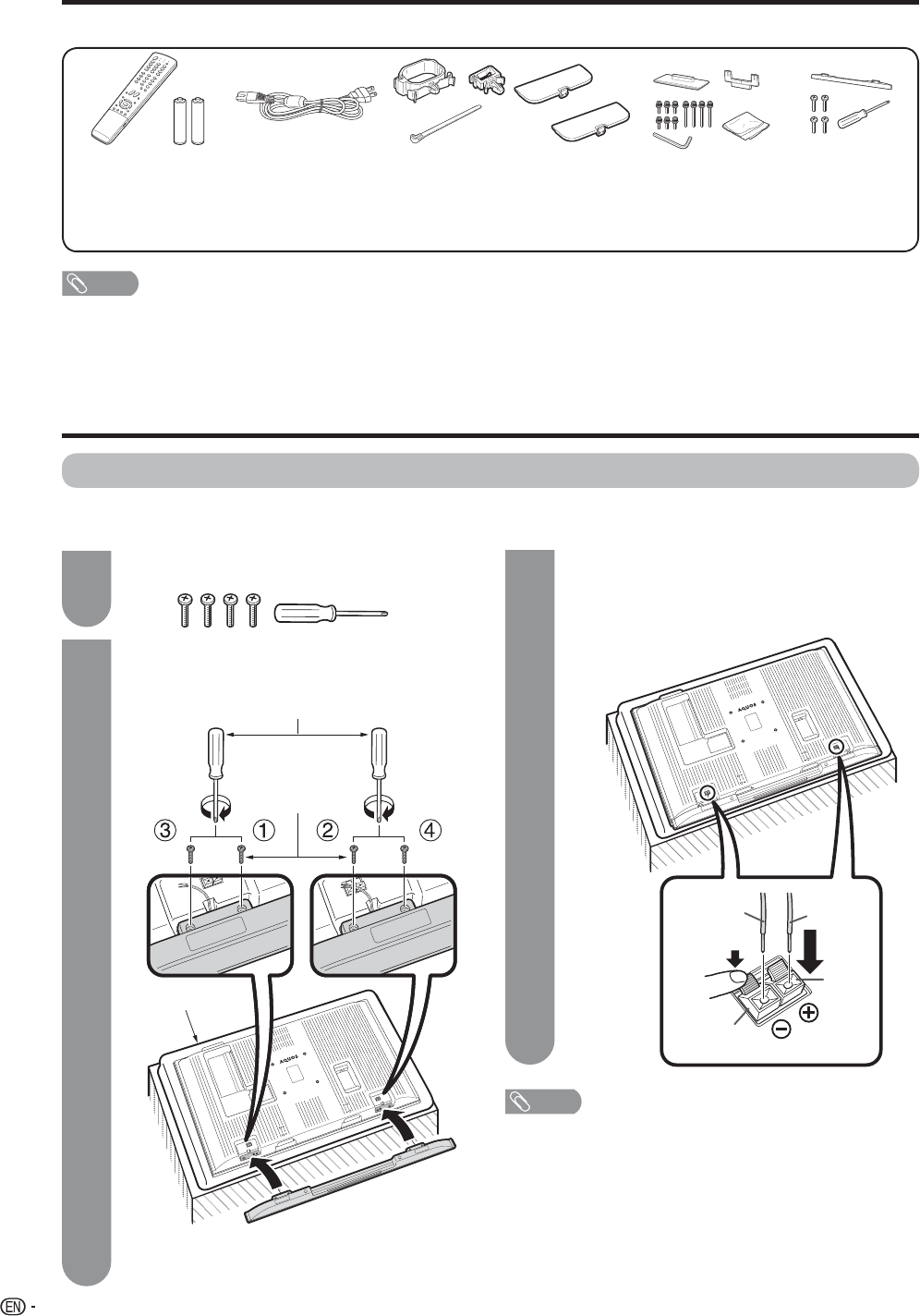

Attaching the speaker unit
• Before attaching (or detaching) the speaker unit, unplug the AC cord from the AC INPUT terminal.
•
Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
6
2
Insert the projections on the speaker unit
into the corresponding slots on the TV, then
fasten the screws.
3
Connect the ends of the cables to the
speaker terminals as shown above.
Connect the leads to the speaker terminals of
the same color.
NOTE
• To detach the speaker unit, perform the steps in reverse
order.
Screwdriver
Screw
Soft cushion
1
Black
Black
Red
Red
Confi rm that there are 4 screws and a
screwdriver supplied with the speaker unit.
Insert and tighten the 4 screws with the hex
key (supplied with the product) in the order of
1
,
2
,
3
and
4
.
