28
Connecting external devices
YPB
(
CB)
PR
(
CR)

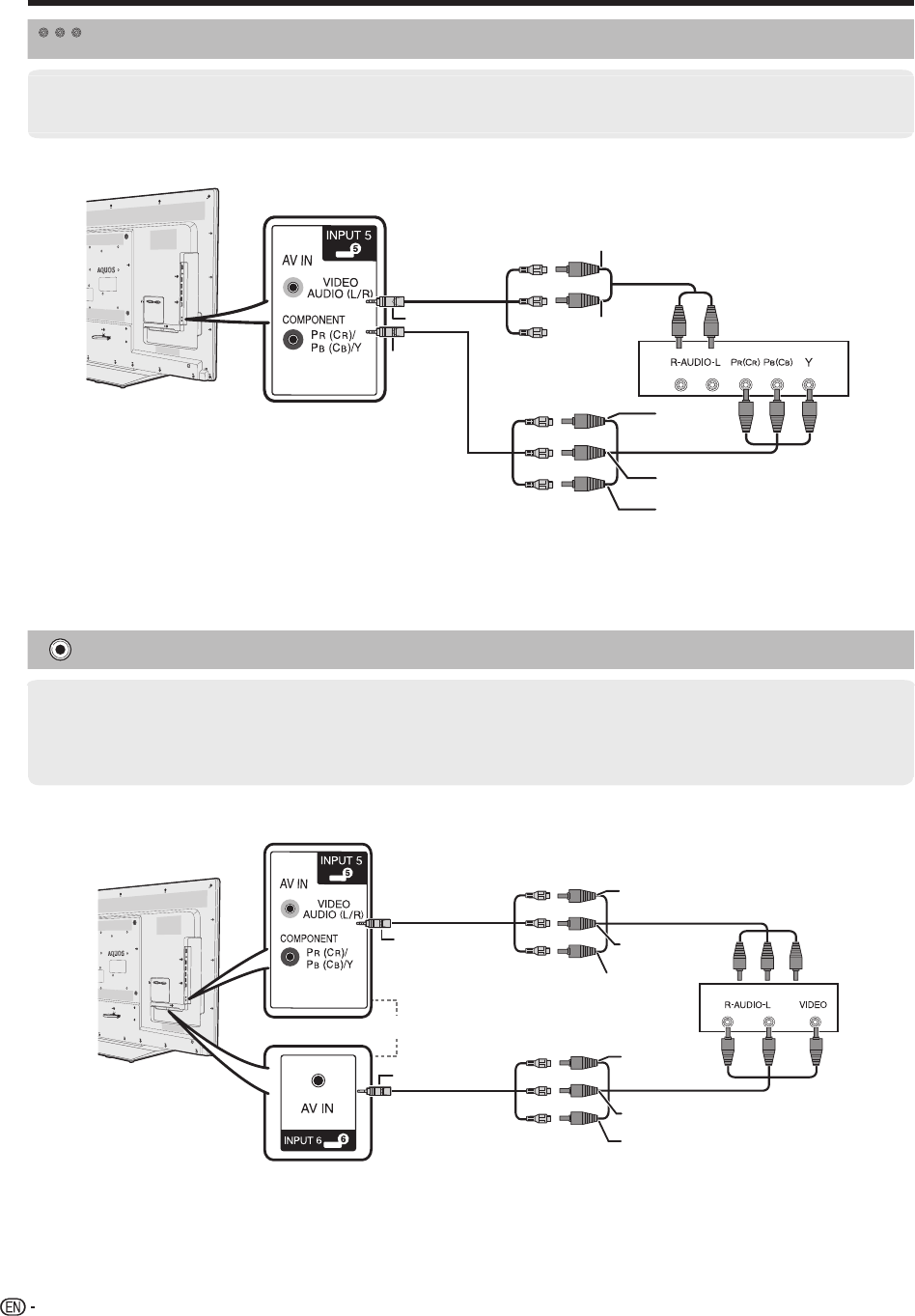

Component connection
Example of connectable devices
E
VCR
E
DVD player/recorder
You will enjoy accurate colour reproduction and high quality images through the INPUT 5 terminal when connecting a
DVD player/recorder or other device.
IN
AUDIO (L/R) is shared
with AV IN)
n
o
(Yellow)
(Green)
AUDIO-L (White)
AUDIO-R
(Red)
P
R (Red)
PB (Blue)
Y (Green)
Component cable (commercially available)
Audio cable (commercially available)
NOTE
• Please see Input select on page 46.
VIDEO connection
Example of connectable devices
E
VCR
E
DVD player/recorder
E
Game console
E
Camcorder
You can use the INPUT 5 or INPUT 6 terminal when connecting to a game console, camcorder, a DVD player/recorder
or other device.
IN
AUDIO (L/R) is shared
with AV IN)
n
o
or
(Yellow)
(Yellow)
VIDEO (Yellow)
VIDEO (Yellow)
AUDIO-L
(White)
AUDIO-R (Red)
AUDIO-R
(Red)
AUDIO-L (White)
AV cable (supplied accessory)
AV cable (commercially available)
NOTE
• When use INPUT 5, please see Input select on page 46.
