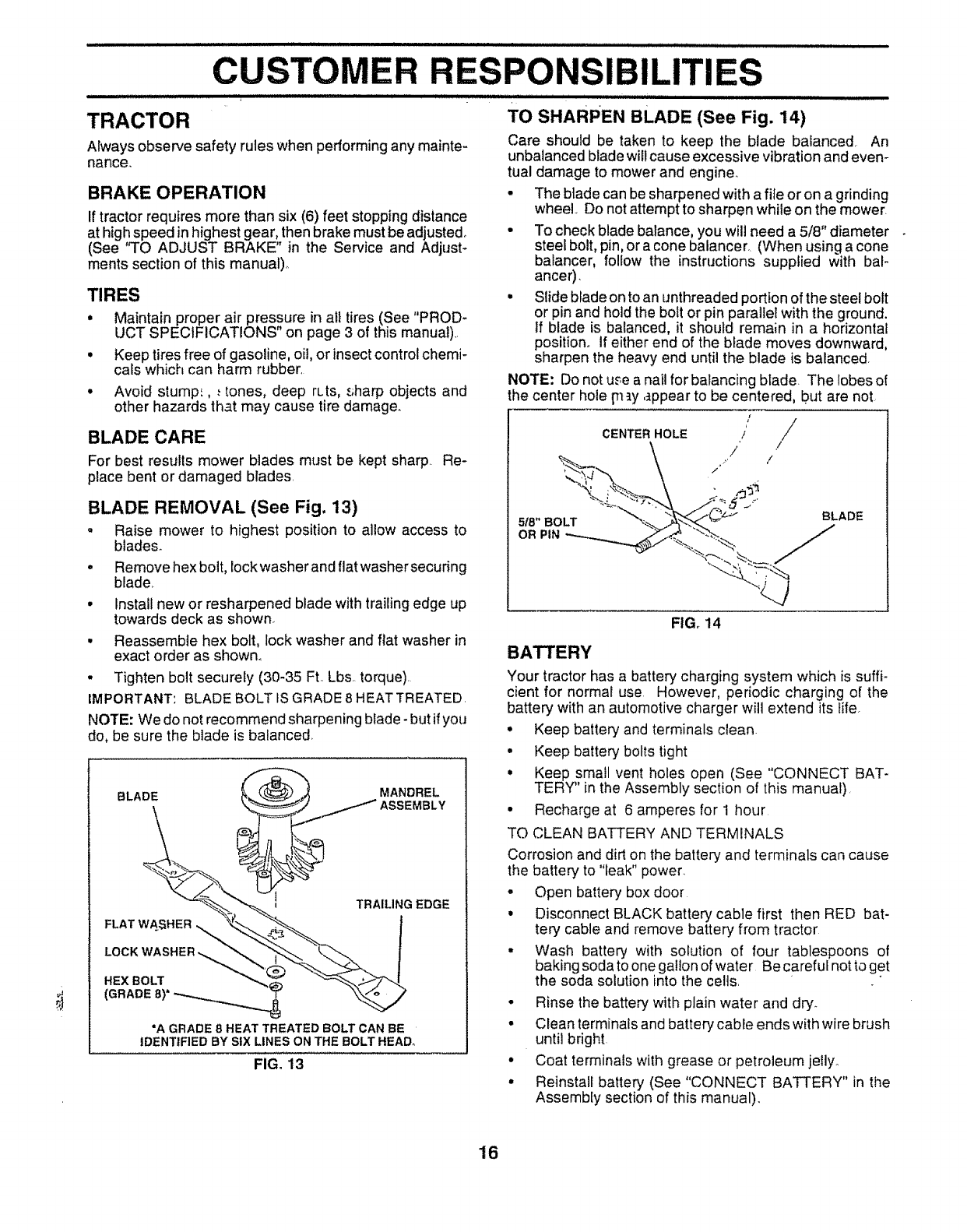

CUSTOMER
NSIBI
i H iiil_lllJJlii1_1JHI +
TRACTOR
Alwaysobserve safety rules when performingany mainte-
nance_
BRAKE OPERATION
If tractorrequires more than six (6) feet stopping distance
at highspeed inhighest gear, then brake must be adjusted°
(See "TO ADJUST BRAKE" in the Service and Adjust+
ments section of this manual)+
TIRES
• Maintain proper air pressure in all tires (See "PROD-
UCT SPECIFICATIONS" on page 3 of this manua!)..
• Keep tires free of gasoline, oil, or insect control chemi-
cals which can harm rubber_
• Avoid stump,+,., tones, deep rLts, _;harp objects and
other hazards that may cause tire damage.
BLADE CARE
For best results mower blades must be kept sharp. Re-
place bent or damaged blades.
BLADE REMOVAL (See Fig. 13)
o Raise mower to hfghest position to allow access to
blades°
• Remove hex bolt, lock washer and flat washer securing
blade.
• Install new or resharpened biade with trailing edge up
towards deck as shown°
• Reassemble hex bolt, lock washer and flat washer in
exact order as shown.
o Tighten bolt securely (30-35 Ft..Lbs torque).
IMPORTANT: BLADE BOLT ISGRADE 8HEAT TREATED.
NOTE: We do not recommend sharpening btade -but ifyou
do, be sure the blade is balanced_
BLADE
MANDREL
ASSEMBLY
TRAILING EDGE
FLATWASHER_ !
LOCK WASHER
HEX BOLT
(GRADES)*
°A GRADE 8 HEAT TREATED BOLT CAN BE
IDENTIFIED BY StX LINES ONTHE BOLT HEADo
FIG, 13
,111i ,11i i ii i i i i i
TO SHARPEN BLADE (See Fig. 14)
Care should be taken to keep the blade balanced An
unbalanced blade will cause excessive vibration and even-
tual damage to mower and engine.
• The blade can be sharpened with a file or on a grinding
wheel.. Do not attempt to sharpen while on the mower.
• To check blade balance, you will need a 5/8" diameter
steel bolt, pin, or a cone balancer.. (When using a cone
balancer, follow the instructions supplied with bal-
ancer).
• Slide bladeon to an unthreaded portion ofthe steel bolt
or pin and hold the bolt or pin parallet with the ground.
If blade is balanced, it should remain in a horizontal
position° if either end of the blade moves downward,
sharpen the heavy end until the blade is balanced
NOTE: Do not u_e a nail forbalancing blade. The lobes o{
the center hole pt ]y ,_ppearto be centered, but are not
518"BOLT
OR PIN
l
CENTER HOLE /' /
/ /
y
BLADE
FIG+ 14
BATTERY
Your tractor has a battery charging system which is suffi-
cient for normal use However, periodic charging of the
battery with an automotive charger will extend its life
• Keep battery and terminals clean
° Keep battery bolts tight
, Keep small vent holes open (See "CONNECT BAT-
TERY" in the Assembly section of this manual).
• Recharge at 6 amperes for ! hour
TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt on the battery and terminals can cause
the battery to "leak" power.
• Open battery box door
, Disconnect BLACK battery cable first then RED bat-
tery cable and remove battery from tractor
• Wash battery with solution of four tablespoons of
baking soda toone gallon ofwater Be careful nottoget
the soda solution into the cells.
• Rinse the battery with plain water and dry+
• Clean terminals and battery' cable ends with wire brush
until bright
• Coat terminals with grease or petroleum je!ly
° Reinstall battery (See "CONNECT BATTERY" in the
Assembly section of this manual).
16
