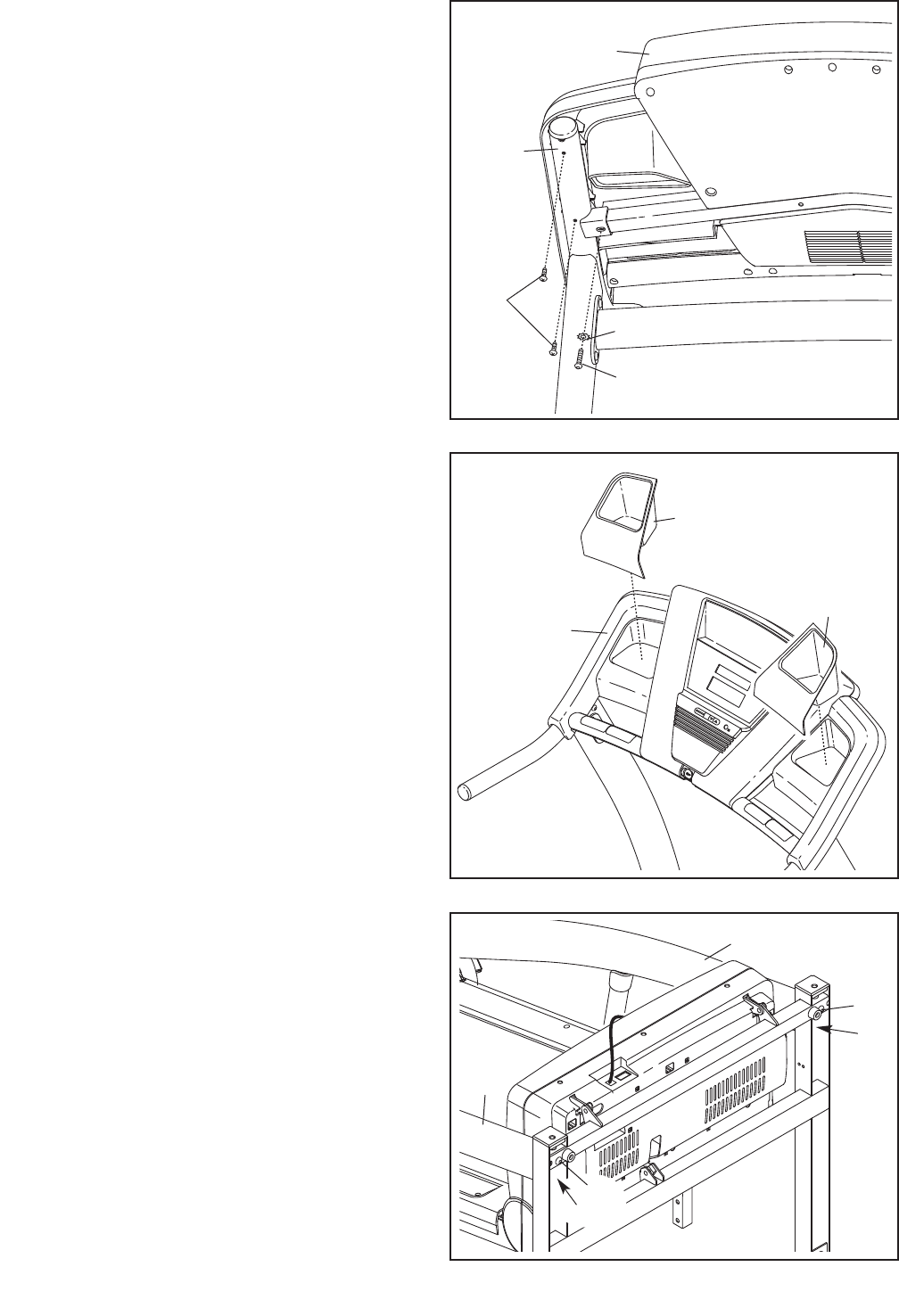

11. Be careful not to pinch the wires in the Right
Handrail (78).
Attach the console assembly to the Right
H
andrail (78) with two #8 x 3/4" Screws (1), a
1/4" x 1 1/4" Bolt (4), and a 1/4" Star Washer
(10). Repeat this step on the left side of the
console assembly. Start all four Screws and
b
oth Bolts before tightening any of them.
See step 7. Tighten the four 1/4" x 5/8" Bolts
(3).
1
10
4
Console Assembly
78
1
1
12. If necessary, press the Left Accessory Tray (96)
and the Right Accessory Tray (97) into the
Console Base (98).
96
97
98
12
13. Carefully lower the Uprights (81, 83).
Tighten the two 3/8" x 1 1/2" Patch Bolts (6) and
the two 3/8" x 3 1/2" Patch Bolts (8).
Raise the Uprights (81, 83).
8
6
13
8
6
81
83
